INLINE PCB MARKER

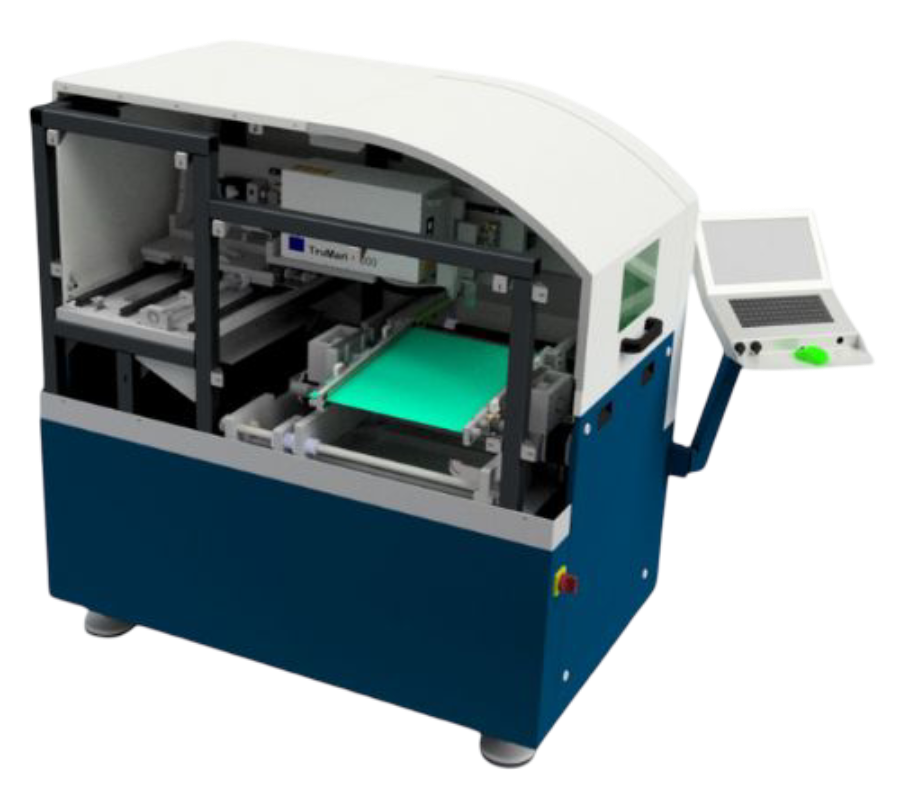

Cx2 inline PCB marking machine is dazzling with its high performance. The short cycle time, ability to write on both sides of the PCB and mark a 2x2mm datamatrix are just a few of its superior features.CX2 offers great benefits to its users with Industry 4.0.
Features
Specialist for series production
The large work area and many options mean that the station is ideal for large lot sizes
Outstanding ergonomics
The well-thought-out design of the work station counteracts fatigue for the machine operator.
Moving Laser
The only station whereby the laser moves through the entire work area and the component is stationary. You can mark workpieces of a wide range of sizes inside the RX3 Laser marking station. The laser can be moved using three axes in the X,Y and Z direction.
Easy Integration
You can easily activate the system without affecting your production plans and workflow.
Easy Product Creation
With TruTops Mark software, you can adapt the drawings in various formats to the easy system.
Quick Product Change
By marking four different products in a recipe, you can eliminate the time loss while changing the product.
Specifications
| Laser type | Trumpf 1110 |
|---|---|
| Maximum PCB size | 450×510 mm |
| Minimum PCB size | 50×50 mm |
| PCB transfer height | 950 mm ± 25 mm |
| PCB thickness | 0.6 – 4 mm |
| Fix rail to front dimension | 302 mm |
| Conveyor interface | SMEMA, I4.0 |
| Power supply | 380VAC / 50Hz / 3 phase |
| Power consumption | 2.5 kW |
| Air supply | 5 bar |
| Dimensions | – |
| Positioning accuracy | ±0.01 |
| Color | RAL 9003 |
Request a Quote
Pricing, lead time and integration details for CX2 PCB Mark
