Mech-Eye Industrial 3D Cameras
High resolution & high accuracy & detail-rich 3D images of a wide variety of objects. Wide model options designed to satisfy diverse practical needs (ambient light resistance, high accuracy, high scanning speed, small size, etc.).
- Mech-Eye
- Mech-Eye Laser
- Mech-Vision
- Mech-Viz
- Mech-DLK
- Mech-MSR
High resolution & high accuracy & detail-rich 3D images of a wide variety of objects. Wide model options designed to satisfy diverse practical needs (ambient light resistance, high accuracy, high scanning speed, small size, etc.).
Rugged Aluminum Alloy Housing
High Accuracy & Resolution 3D Images
Dust and Water Proof
Reliable Scanning Performance
Easy Setup and Fast Deployment
Multiple Model Options
Highly Accurate 3D Point Clouds
Food and tableware
Food and tableware by Mech-Mind Robotics on Sketchfab Food and tableware by Mech-Mind Robotics on Sketchfab
Collection of colorful Christmas ornaments
Collection of colorful Christmas ornaments by Mech-Mind Robotics on Sketchfab Collection of colorful Christmas ornaments by Mech-Mind Robotics on Sketchfab
Dark and reflective objects
Dark and reflective objects by Mech-Mind Robotics on Sketchfab Dark and reflective objects by Mech-Mind Robotics on Sketchfab
CV joints
CV joints by Mech-Mind Robotics on Sketchfab CV joints by Mech-Mind Robotics on Sketchfab
Transparent medical items
Transparent medical items by Mech-Mind Robotics on Sketchfab Transparent medical items by Mech-Mind Robotics on Sketchfab
Colored sacks
Colored sacks by Mech-Mind Robotics on Sketchfab Colored sacks by Mech-Mind Robotics on Sketchfab
Product Advantages
Rugged Aluminum Alloy Housing
Mech-Eye industrial 3D camera has an rugged aluminum alloy housing built to last on the factory floor.
High Accuracy & Resolution 3D Images
Mech-Eye industrial 3D cameras can generate highly accurate and detailed 3D images of a wide variety of objects.
Dust and Water Proof
Mech-Eye industrial 3D camera is IP65-rated and CE, FCC, VCCI, UKCA, KC, ISED, NRTL, and RoHS certified. It can operate long in harsh environments with dust, vibration, humidity, electromagnetic interference, and high temperature.
Reliable Scanning Performance
Mech-Eye industrial 3D camera is reliable and durable, with a certified MTBF of ≥ 100,000 hours. It delivers reliable scanning performance, even in complex scenarios.
Easy Setup and Fast Deployment
Mech-Eye industrial 3D camera is easy setup, reducing typical vision deployment times. It also offers flexible mounting applications, quickly adapting to your production layout.
Multiple Model Options
Multiple models respond to your diverse needs and manage a broad range of robotic applications, from bin picking, piece picking, and assembly to quality inspection.
Mech-Eye Industrial 3D Cameras

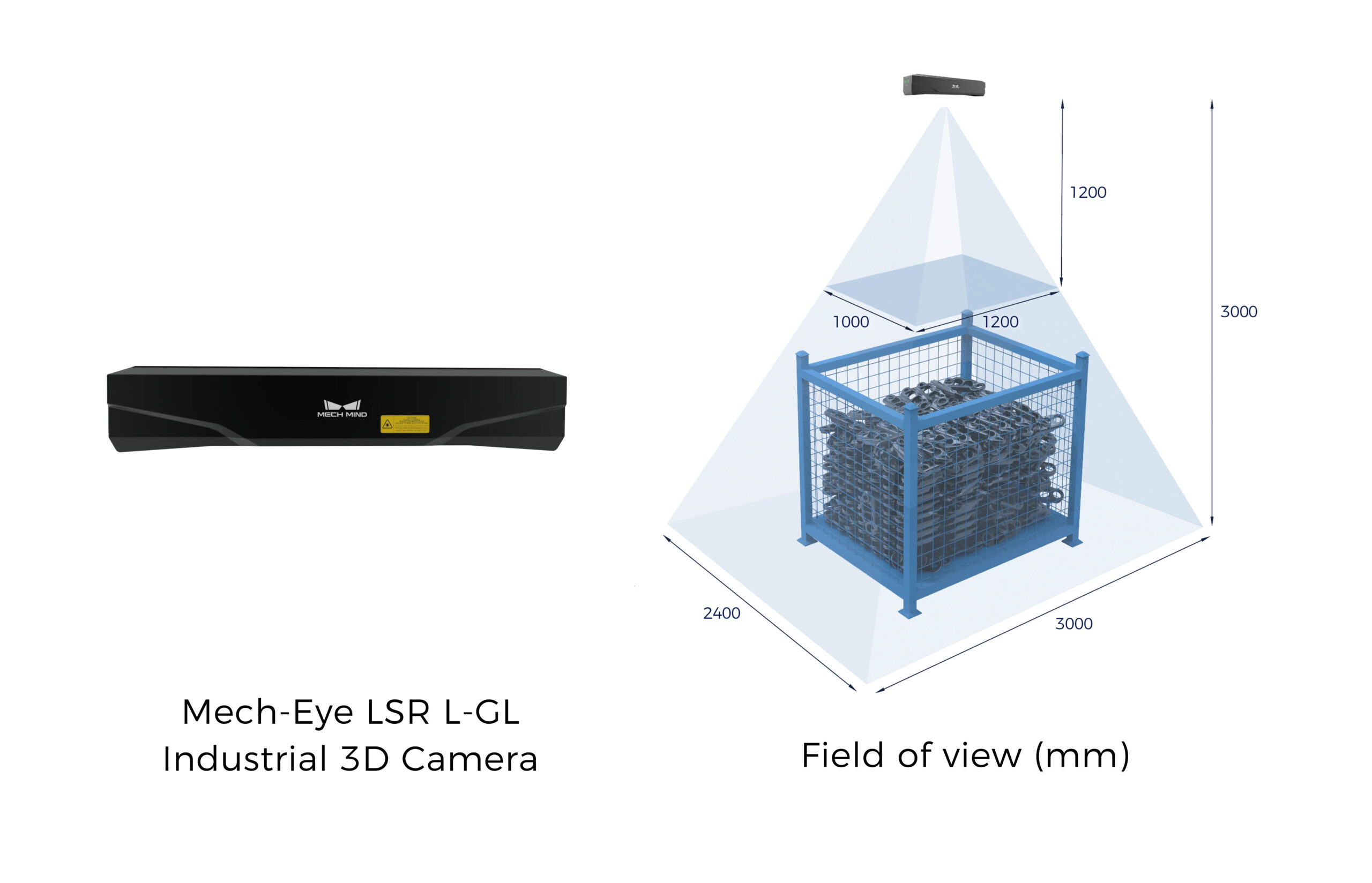

Mech-Eye LSR L-GL Industrial 3D Camera
- Large FOV
- Ambient light resistance
- Robust interreflection suppression
- Ideal for robotic guidance

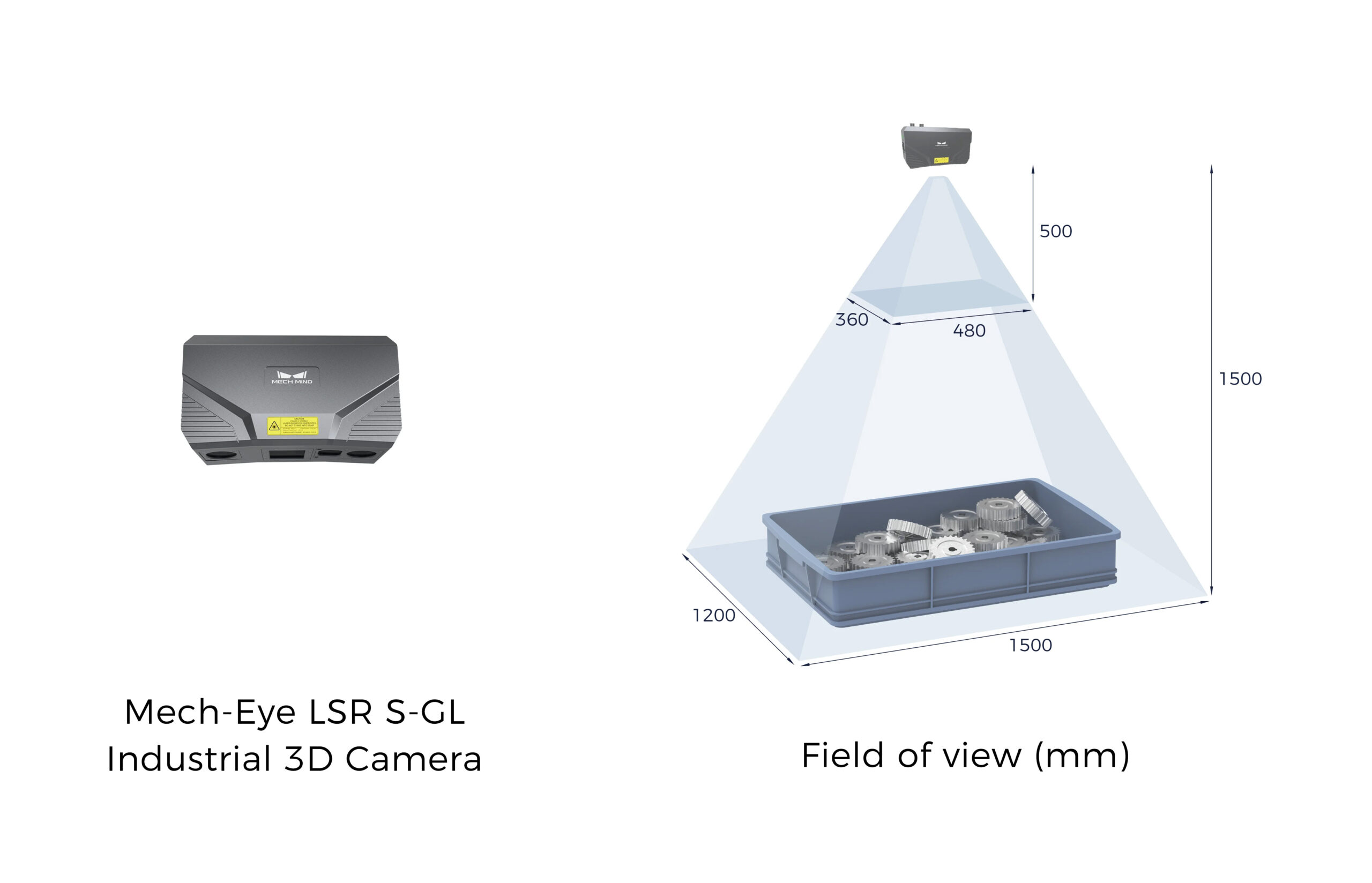

Mech-Eye LSR S-GL Industrial 3D Camera
- High accuracy
- Small size
- Strong resistance to ambient light
- For medium-range outdoor applications

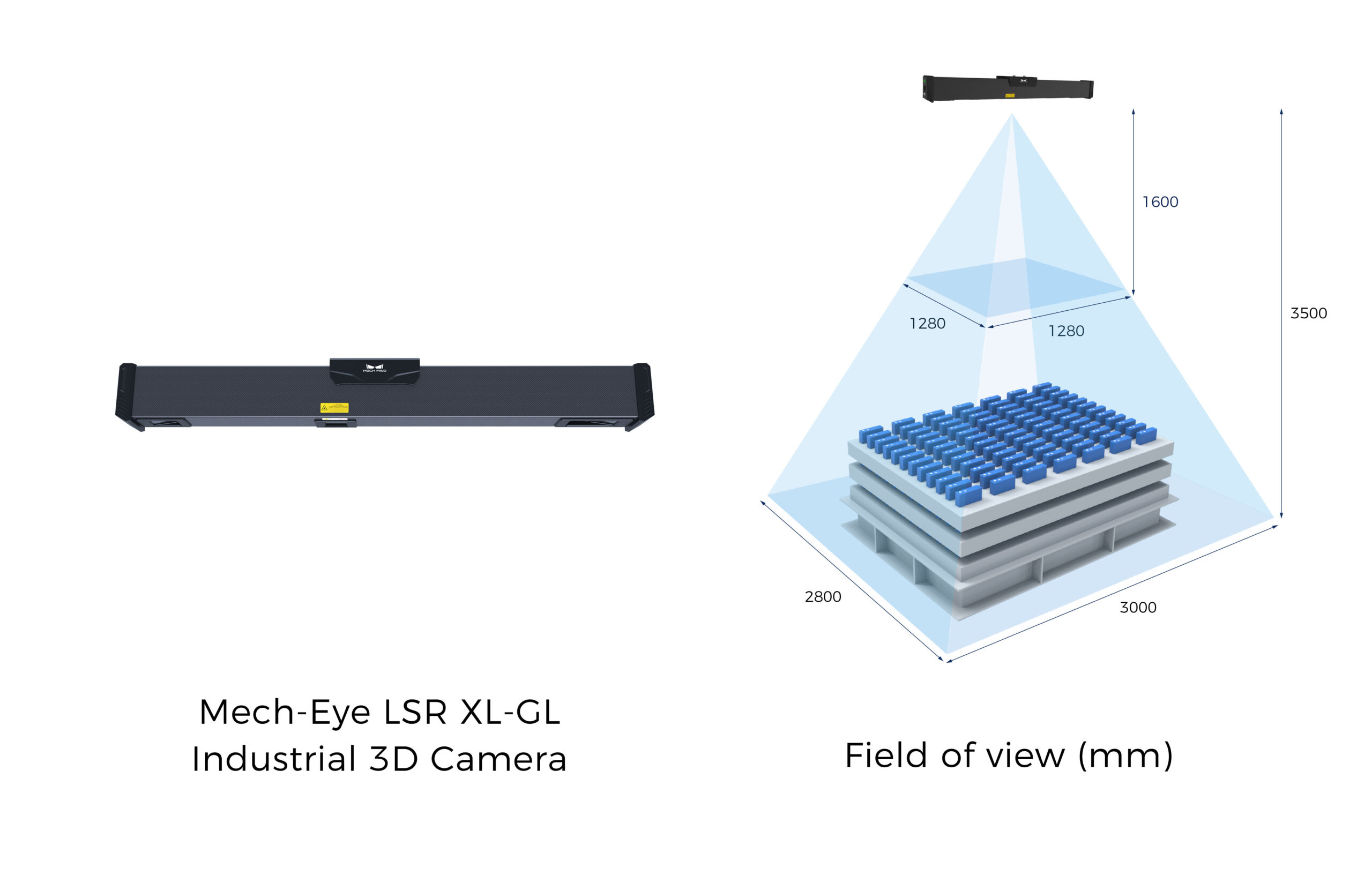

Mech-Eye LSR XL-GL Industrial 3D Camera
- Ultra-high resolution
- Extensive scanning range
- Exceptional anti-reflection capability
- Robust resistance to ambient light
- Designed for high-precision applications at long working distances

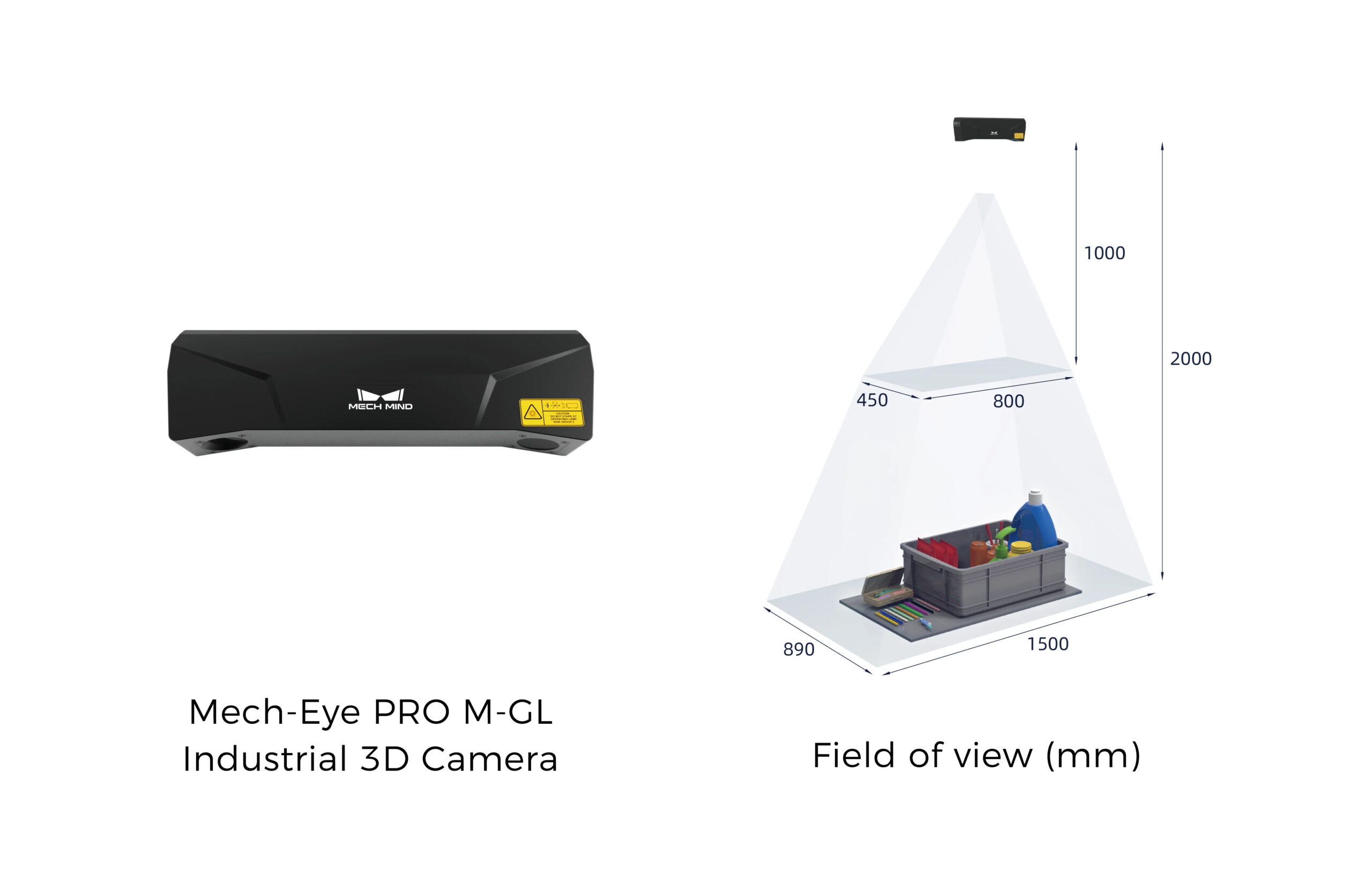

Mech-Eye PRO M-GL Industrial 3D Camera
- High accuracy
- Extended FOV
- Detail-rich 3D point clouds
- Rapid image acquisition
- Designed for medium-range robotic applications
Choose the Right 3D Camera for Your Applications
| Model | UHP-140-GL | NANO-GL | NANO ULTRA-GL | PRO S-GL | PRO M-GL | LSR S-GL | LSR L-GL | LSR XL-GL | DEEP-GL |
|---|---|---|---|---|---|---|---|---|---|
| *Working distance(mm) | 300 ± 20 | 300–600 | 250–800 | 500–1000 | 1000–2000 | 500–1500 | 1200–3000 | 1600–3500 | 1200–3500 |
| Near FOV (mm) | 135 × 90 @ 0.28m | 220 × 150 @ 0.3 m | 220 × 165 @ 0.25 m | 370 × 240 @ 0.5 m | 800 × 450 @ 1.0 m | 480 × 360 @ 0.5 m | 1200 × 1000 @ 1.2 m | 1280 × 1280 @ 1.6 m | 1200 × 1000 @ 1.2 m |
| Far FOV (mm) | 150 × 100 @ 0.32m | 440 × 300 @ 0.6 m | 770 × 550 @ 0.8 m | 800 × 450 @ 1.0 m | 1500 × 890 @ 2.0 m | 1500 × 1200 @ 1.5 m | 3000 × 2400 @ 3.0 m | 3000 × 2800 @ 3.5 m | 3500 × 2800 @ 3.5 m |
| Resolution | 2048 × 1536 | 1280 × 1024 | 2400 × 1800 | 1920 × 1200 | 1920 × 1200 | Depth Map：2048 × 1536RGB：4000 x 30002000 x 1500 | Depth Map：2048 × 1536RGB：4000 x 30002000 x 1500 | Depth Map：2448 × 2040RGB：4000 x 30002000 x 1500 | Depth Map：2048 × 1536RGB：2000 x 1500 |
| Megapixels | 3 MP | 1.3MP | 4.3 MP | 2.3 MP | 2.3 MP | / | / | / | / |
| **Point Z-valuerepeatability (σ) | 2.6 μm @ 0.3m | 0.1 mm @ 0.5 m | 0.1 mm @ 0.6 m | 0.05 mm @ 1 m | 0.2 mm @ 2 m | 0.2 mm @ 1.5 m | 0.5 mm @ 3 m | 0.2 mm @ 3 m | 1.0 mm @ 3 m |
| ***Measurementaccuracy (VDI/VDE) | 0.03 mm @ 0.3 m | 0.1 mm @ 0.5 m | 0.1 mm @ 0.6 m | 0.1 mm @ 1 m | 0.2 mm @ 2 m | 1.0 mm @ 1.5 m | 1.0 mm @ 3 m | 1.0 mm @ 3 m | 3.0 mm @ 3m |
| Typical capture time (s) | 0.6–0.9 | 0.6–1.1 | 0.5–0.9 | 0.3–0.6 | 0.3–0.6 | 0.5–0.9 | 0.5–0.9 | 0.6–1.1 | 0.5–0.9 |
| Baseline (mm) | 80 | 68 | 86 | 180 | 270 | 140 | 380 | 800 | 300 |
| Dimensions (mm) | 260 × 65 × 142 | 145 × 51 × 85 | 125 × 46 × 76 | 265 × 57 × 100 | 353 × 57 × 100 | 228 × 77 × 126 | 459 × 77 × 86 | 942 × 88 × 116 | 366 × 77 × 92 |
| Weight (kg) | 1.9 | 0.7 | 0.7 | 1.6 | 1.9 | 1.9 | 2.9 | 4.5 | 2.4 |
| Operatingtemperature (℃) | 0–45 | -10–45 | |||||||
| Communicationinterface | Gigabit Ethernet | ||||||||
| Image sensor | Sony CMOS for high-end machine vision | High-performance CMOS for high-end machine vision | Sony CMOS for high-end machine vision | ||||||
| Input | 24 VDC, 3.75 A | 24 VDC,1.5 A | 24 VDC, 3.75 A | ||||||
| Safety and EMC | CE/FCC/VCCI/KC/ISED/NRTLCE/FCC/VCCI/KC/ISED/NRTL | ||||||||
| Light source | Blue LED (459 nm, RG2) | Blue LED (459 nm, RG2)/White LED (RG2) | Blue LED (440 nm, RG2) | Blue LED (459 nm, RG2)/White LED (RG2) | Red laser (638 nm, Class 2) | ||||
| IP rating | IP65 | IP67 | IP65 | ||||||
| Cooling | Passive | ||||||||
| Remark | * Various object focal distances are available for a single camera model. For details, please refer to the technical specifications.**The standard deviation of the single point Z value for 100 measurements. The measurement target is a ceramic plate.***Standard: VDI/VDE2634 Part II.For information on discontinued models, please refer to camera materials of previous models. |
FAQs for Mech-Eye Industrial 3D Cameras
An industrial 3D camera is a camera used in industrial applications which can capture objects and reconstruct them from a three-dimensional image. It’s been increasingly used in diverse industries, especially in manufacturing and logistics.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Usually, industrial 3D cameras work with robots to complete various industrial tasks like bin picking, machine tending, assembly, inspection, measurement, etc. Industrial 3D cameras can be mounted on the arm robots to capture and collect 3D data of the target objects, which is fundamental for robots to execute further steps like picking & placing, loading & unloading, etc.
Mech-Eye industrial 3D cameras feature high accuracy, fast processing speed, and high-cost performance.
Mech-Eye industrial 3D cameras have full model options, which cover a wide range of industrial applications with diverse requirements on working distance, accuracy, ambient light resistance, etc.
Mech-Eye industrial 3D cameras can be used in almost all common robot applications, including bin picking, machine tending, palletizing & depalletizing, automated piece picking, assembly, etc.
Request a Quote
Pricing, lead time and integration details for Mech-Eye Industrial 3D Cameras
