NG Conveyor

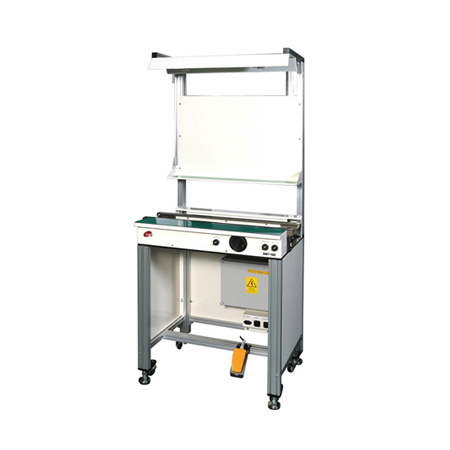

Model: ENC-700F. Equipment Name: NG Conveyor. Designed to keep NG PCBs moving after the inspection machine without interrupting visual inspection or delaying production. In NG mode, when the machine receives an NG SMEMA signal from the inspection machine, the PCB stops in the middle of the conveyor and the finger lifter
Model: ENC-700F
Equipment Name
NG Conveyor
Description
Designed to keep NG PCBs moving after the inspection machine without interrupting visual inspection or delaying production. In NG mode, when the machine receives an NG SMEMA signal from the inspection machine, the PCB stops in the middle of the conveyor. The finger lifter then raises the NG PCB. The next OK PCB can be transferred underneath the NG PCB. Depending on the operator's check result, the repaired PCB can return to production or be removed by pressing the foot pedal or the pass button. Only a single NG PCB can be handled at a time. In pass-through mode, the machine operates as a normal link conveyor.
Options
1. Automatic or Semi-Automatic Width Adjustment
2. Touch Screen for Operation Panel
3. 3-Color Tower Lamp with Audible Alarm
4. ESD Grounding Sockets
5. Safety Cover without Component Bin Tray
6. Variable Length: 500 mm to 3,000 mm
7. Variable Buffer Stations: 1 Buffer, 2 Buffers or 3 Buffers with Motor Drive
8. Variable Conveyor Belt: #25 Chain Belt, Round Belt, Timing Belt
9. Dual Conveyor Type without Top Lighting and Component Bin (Model Name: ENC-700FD)
10. CE Device (Model Name: ENC-700FC)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operation Panel and Foot Pedal or Pass Button
3. Ceiling Light and Component Box Tray
4. ESD Mat Table
5. Standard Conveyor Length: 800 mm
6. Adjustable Conveyor Speed via Speed Controller inside the Control Box: 0~180 mm/sec (60 Hz)
7. Switch-Selectable Mode (NG Mode or Pass-Through Mode)
– NG Mode: The NG PCB (via the inspection machine SMEMA signal) stops at the center sensor and is lifted by the finger lifter.
– Pass-Through Mode: The conveyor operates like a normal link conveyor.
8. Complies with SMEMA Spec. 1.2.
| Model | ENC-700F | ||
|---|---|---|---|
| Type | SL | YL | XL |
| PCB Size (L x W, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×350 | 50×50 ~ 530×460 |
| Machine Size (L x W x H, mm) | 800X650X1826 | Eight hundred, seven hundred, eighty-six | Eight hundred, eight hundred sixty, eighteen hundred twenty-six |
| Weight (kg) | 80 | 90 | 100 |
