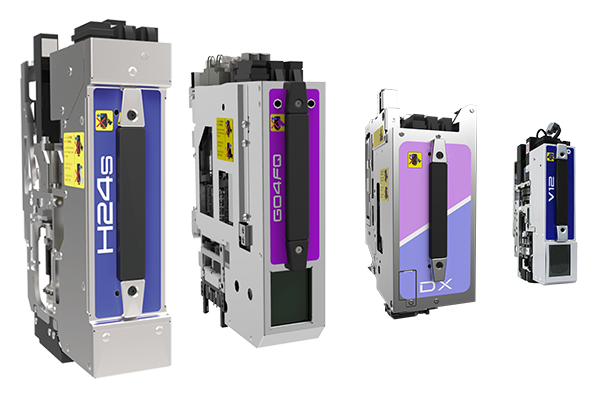

Fuji head strengths
Fuji placement heads combine advanced high-speed mechanisms and sensing technology in a compact, lightweight body. This enables industry-leading speed and high-precision placement. The heads support a wide range of part sizes to meet varied production needs.
Fuji placement heads combine advanced, high-speed mechanisms and sensing technology in a compact, lightweight body. This is how Fuji achieves industry-leading speed and high-precision placement. The heads can handle a wide range of part sizes and heights to meet varied production needs, and can also incorporate various functions for different production types. In addition, the compact and lightweight heads can be easily attached and removed without tools, and can be maintained automatically offline. The maintenance load is also greatly reduced. With their speed, accuracy, durability, and ease of use, FUJI placement heads deliver high productivity and high-quality placement in SMT factories.
1

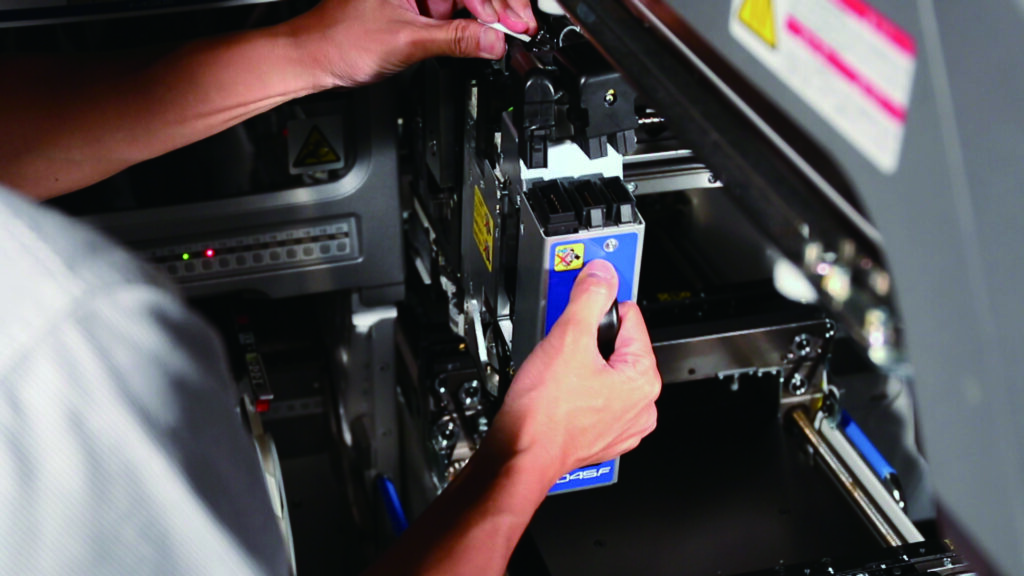

Simple, tool-free head exchange
This uniquely compact and lightweight head lets operators carry out maintenance and troubleshooting tasks that demand speed. Thanks to its fully tool-free design, operators of any skill level can easily perform head exchange.
2

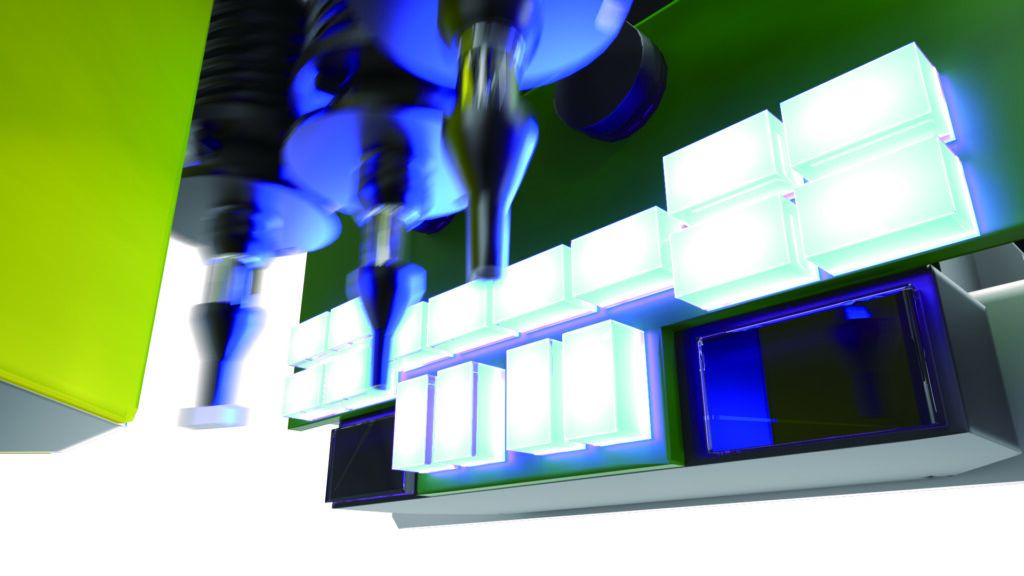

Multiple checks at full speed (IPS)
IPS can perform a wide range of checks, from the part pickup position to parts remaining on nozzles, as well as upside-down checks for minimold parts. High-speed image processing maintains placement quality without any loss of productivity.
3

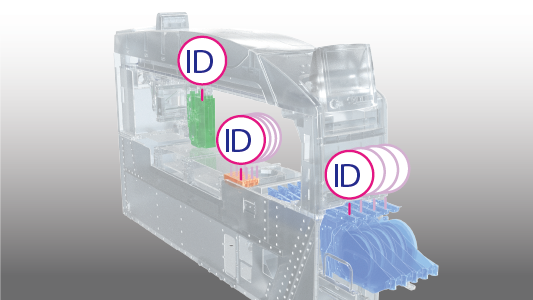

Unit ID management
All units used in production, including heads, feeders, and individual nozzles, are managed by ID numbers, and their production information is stored in a database. This is useful for line management, maintenance, and traceability.
High-speed head

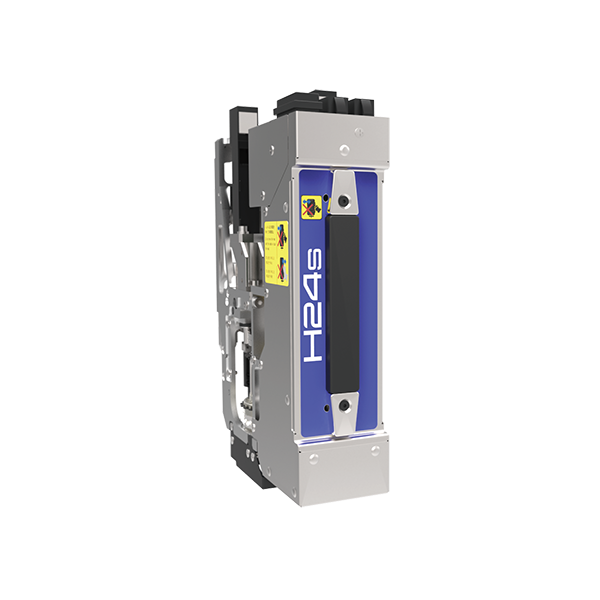

H24S, H24A
Nozzle quantity: 24
Part size: 0201 (008004″) to 5.0 x 5.0 mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc

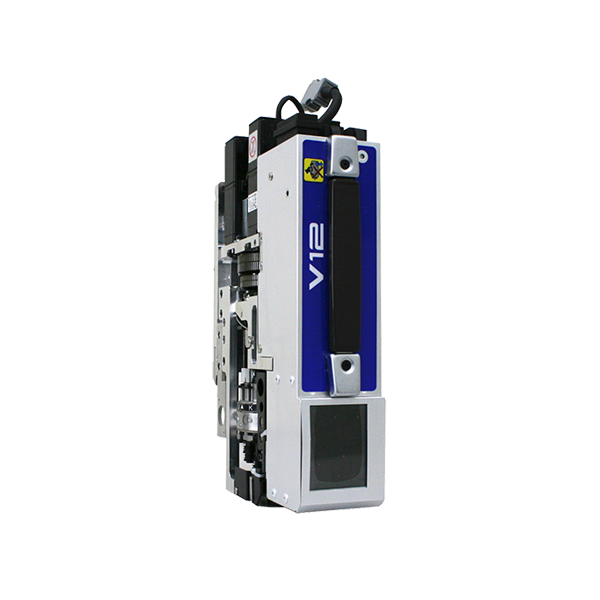

V12
Nozzle quantity: 12
Part size: 0402 (01005″) to 7.5 x 7.5 mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc

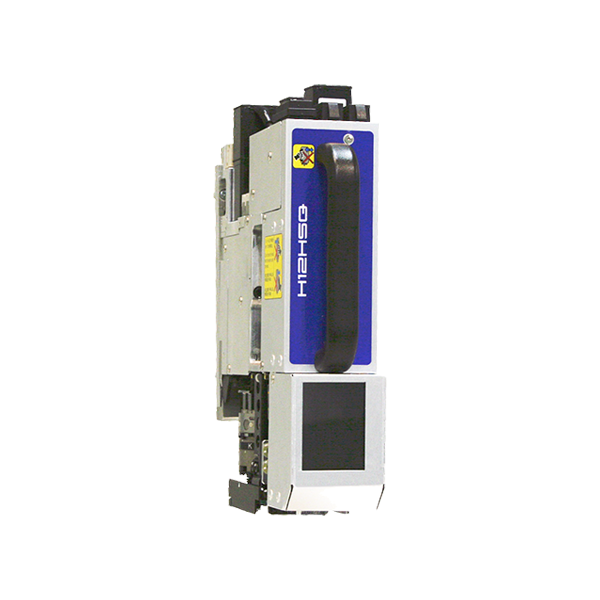

H12HSQ, H12HS
Medium-speed head

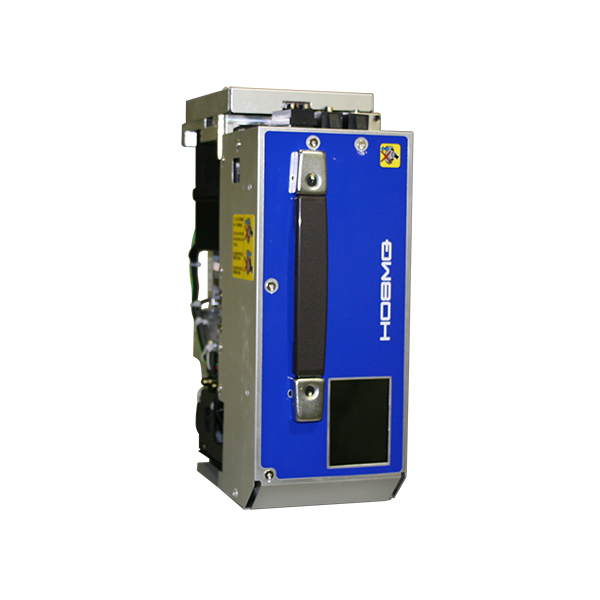

H08M, H08MQ
Nozzle quantity: 8
Part size: 0603 (0201″) to 45 x 45 mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc

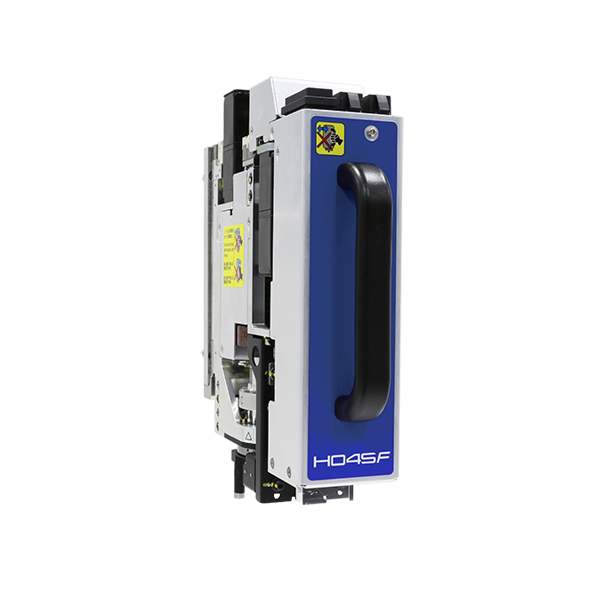

H04SF
Nozzle quantity: 4
Part size: 1608 (0603″) to 38 x 38 mm
Supported machines: NXT III, NXT IIIc

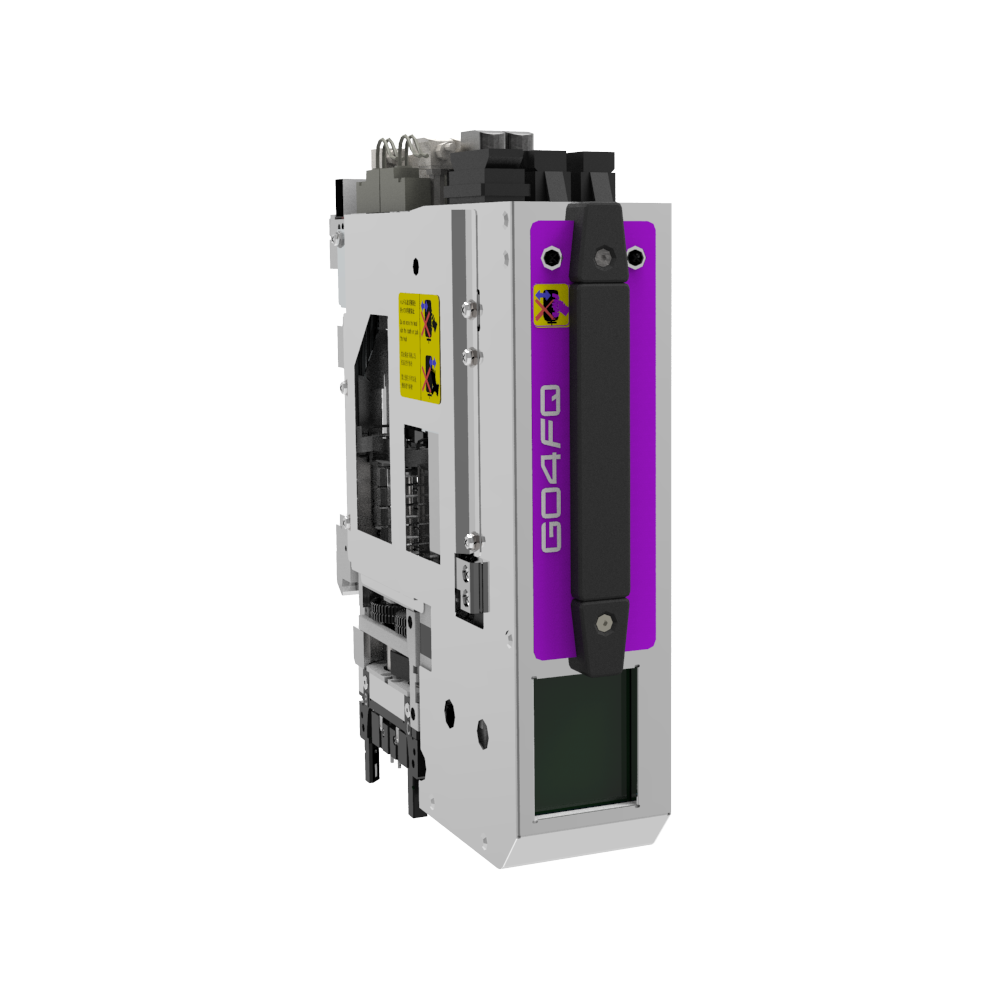

G04F, G04FQ
Nozzle quantity: 4
Part size: 0402 (01005″) to 15 x 15 mm
Supported machines: NXT III, NXT IIIc
General-purpose head

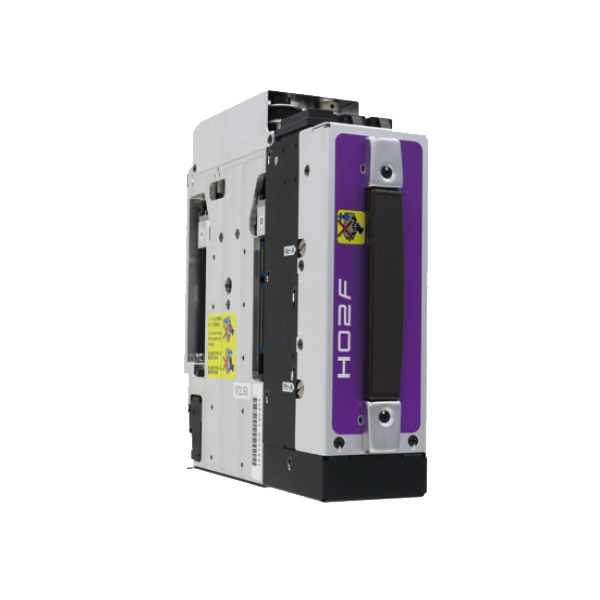

H02F
Nozzle quantity: 2
Part size: 1608 (0603″) to 74 x 74 mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc

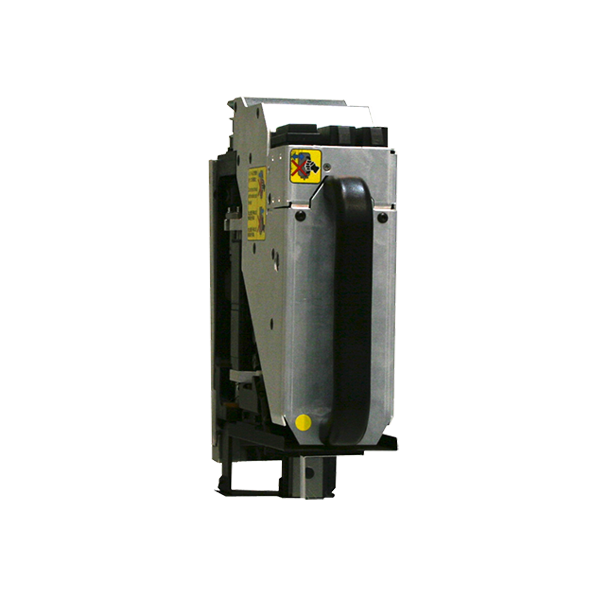

H01
Nozzle quantity: 1
Part size: 1608 (0603″) to 74 x 74 (32 x 162) mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc

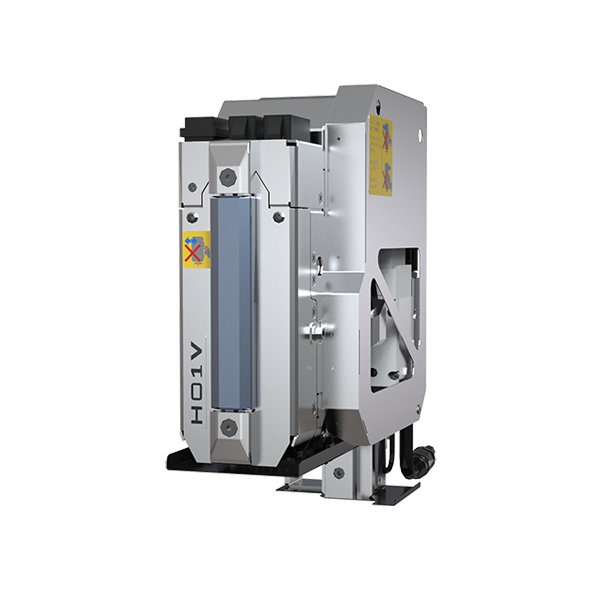

H01V
Nozzle quantity: 1, support for odd-form parts
Part size: 1608 (0603″) to 74 x 74 (32 x 162) mm
Supported machines: NXT III, NXT IIIc

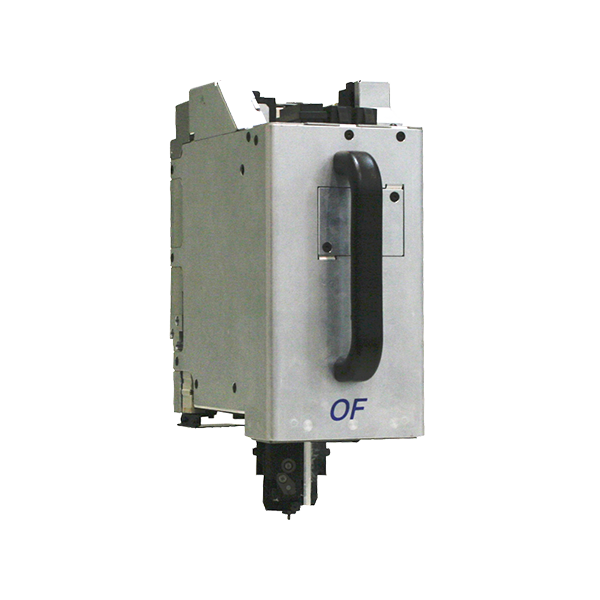

OF
Nozzle quantity: 1, mechanical chuck support
Part size: 1608 (0603″) to 74 x 74 (32 x 162) mm
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc
Dispensing head

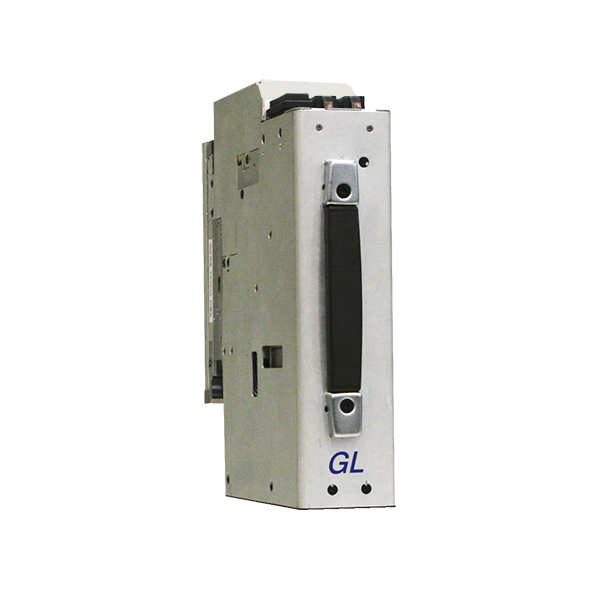

GL
Specially designed for material dispensing
Supported machines: NXT III, NXT IIIc

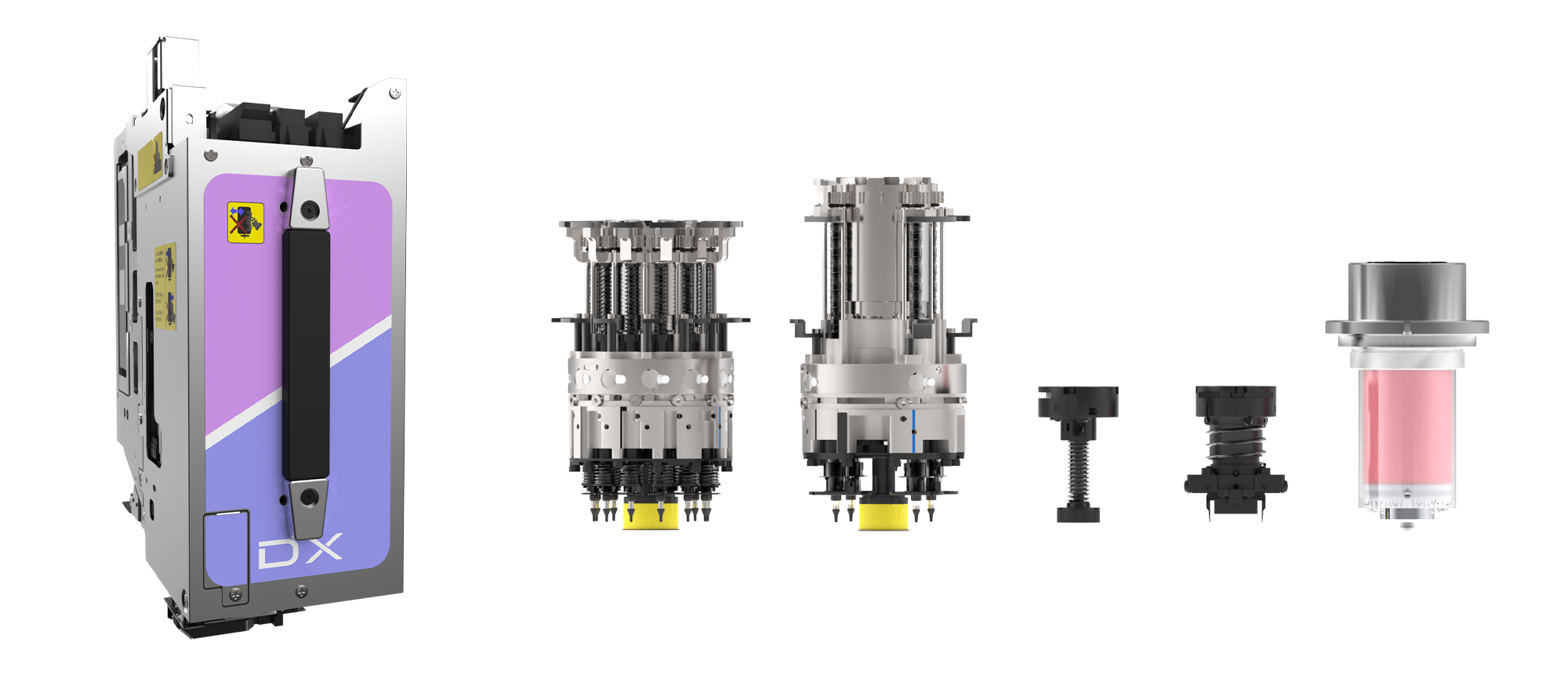

DynaHead (DX)
This is an innovative solution that supports flexible production for various production types with a single head.
Supported machines: NXT III, NXT IIIc, AIMEX III, AIMEX IIIc
