Features

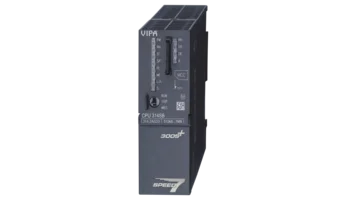

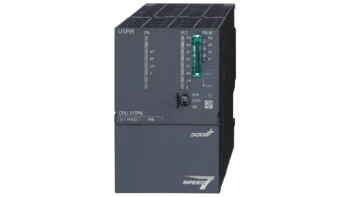

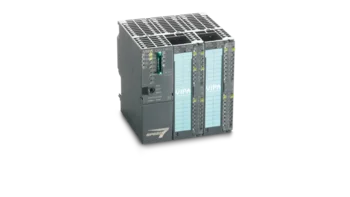

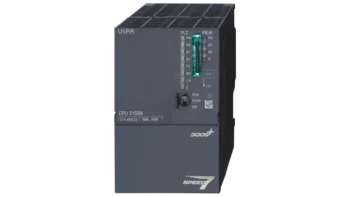

Powered by SPEED7, the 300S is one of the fastest and most efficient µC-based systems in the world, programmable with Siemens WinPLC7, STEP7 or TIA.

CPUs with SPEED7 technology convince our customers not only with their outstanding speed, but also with the optional VIPA SPEED bus, which improves overall response and signal processing time.

The external storage option via MMC or SD card (up to 2 GB) enables automatic or manual backup and restore of data and projects, such as data backup, recipe storage or project backup. The globally recognized AdvancedKnowHow-Protect is at your service to protect your know-how. An attractive range of integrated communication interfaces, such as standard Ethernet for PG/OP communication, gives you comfort and flexibility.

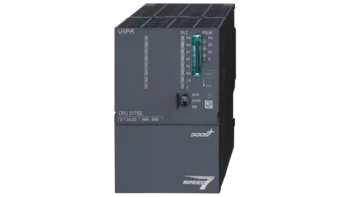

Particularly advantageous: thanks to the integrated work memory, our 300S CPUs can also operate without an additional memory card. If required, the integrated work memory can be individually expanded up to 8 MB with the VIPA MCC (MemoryConfigurationCard), depending on the CPU type. The 300S+ CPU grows with your tasks.

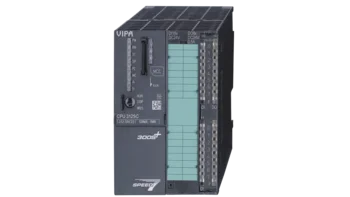

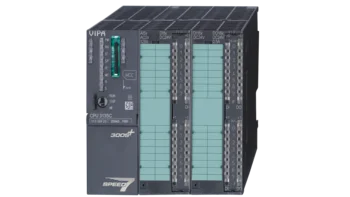

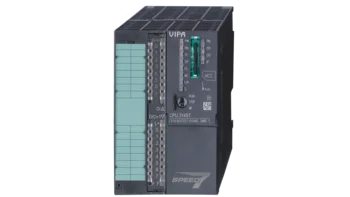

Equipped with integrated SPEED7 technology and I/O peripherals, our 300S COMPACT CPUs are particularly suitable for cost-sensitive applications. With its high-speed performance, scalable memory and diverse communication options, our 300S+ product is suitable for almost all demanding applications.

• Integrated SPEED7 processor for outstanding performance

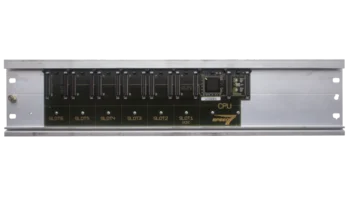

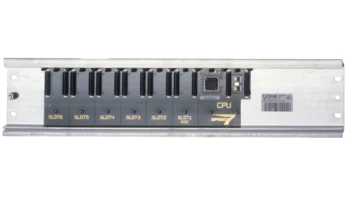

• Optional SPEED-Bus for expansion with high-speed signal modules and communication processors

• Integrated work memory: operates without an additional memory card

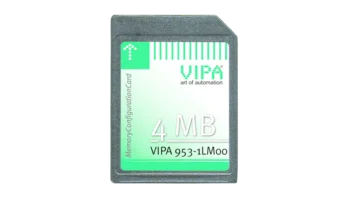

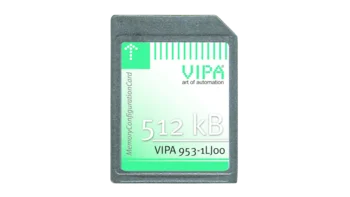

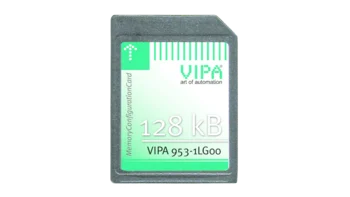

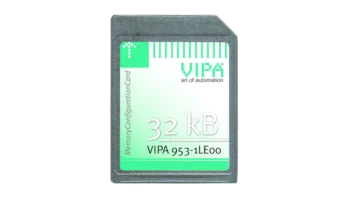

• Flexible memory expansion using the Memory Configuration Card (MCC)

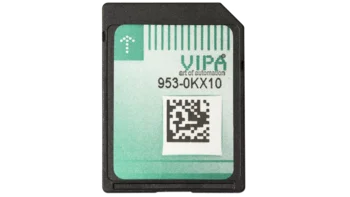

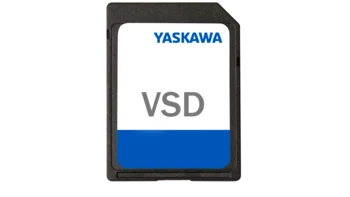

• External storage option via MMC or SD card (up to 2 GB)
• Integrated battery-backed RAM memory
• Secure AdvancedKnowHow-Protect available for your know-how.

• Ethernet, PROFIBUS-DP, serial RS485 and MPI interface on board

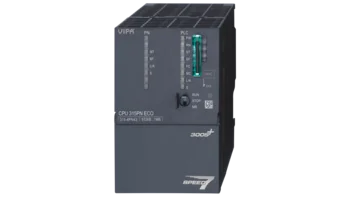

• Optional: Profinet, CANopen, Interbus, Serial, Modbus RTU, Modbus over TCP, UDP, RFC1006

• Form and function compatible with S7-300
• Mixed operation of VIPA 300S+ and Siemens modules on the same rack is supported.
• Programmable with WinPLC7, STEP7 or TIA
• Deployable centrally and decentrally
• Modularly expandable

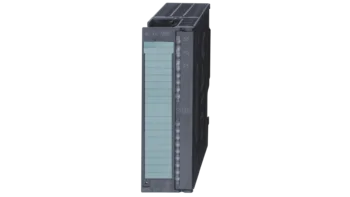

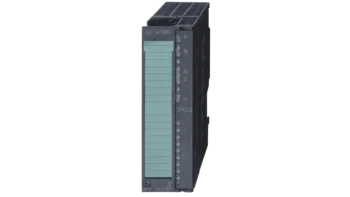

• Fast analog modules: conversion of 4 analog channels in 100 µs

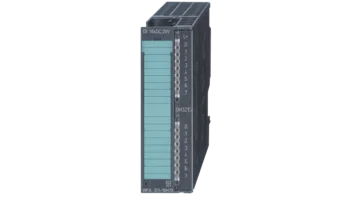

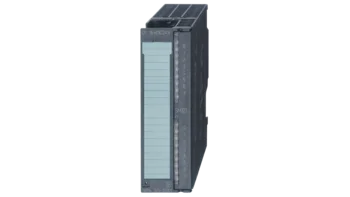

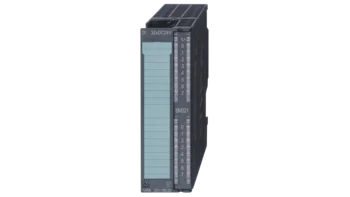

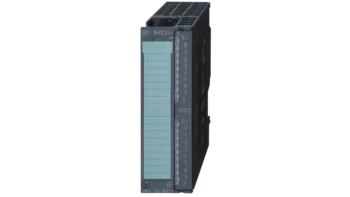

• Flexible digital modules: channel response time freely adjustable between 2.65 µs and 40 ms

• Centrally expandable up to 32 modules, directly on the CPU!
• Individually expandable reserve in terms of performance and capacity
• 36-month warranty
• Certifications: cULus and CE
