Bin Picking
Guided by Mech-Mind 3D vision system, robots can recognize randomly-piled materials, even those with dark or reflective surfaces and complex structures, and then pick them up from deep bins accurately without damaging the components.
Core Advantages
Robust 3D Vision System
Mech-Eye industrial 3D camera generates high-resolution and accurate 3D point clouds of various challenging objects, including reflective, machined metal parts, complex-structured and irregular objects, etc.
Powerful AI Algorithms
Advanced AI algorithms, such as picking strategy, enable robots to accurately pick up various objects. Collision detection and path planning algorithms ensure precise and collision-free robotic picking.
Plug and Play, Easy to Use
With a visualized interface, Mech-Viz robot programming software can simulate the robot’s path with only one click. The code-free programming environment provides a low threshold for users to deploy robotic applications quickly.
Seamless Integration with the WMS System
Seamless integration with the WMS system allows robots to pick objects on demand.
Specification
| Objects | Support objects in different sizes and shapes (including randomly stacked tiny objects, complex-structured metal parts with dark or shiny surfaces, etc.) |
|---|---|
| Robot Brands | Support almost all major-brand robots |
| Calibration | Self-calibration |
Intelligent Algorithm

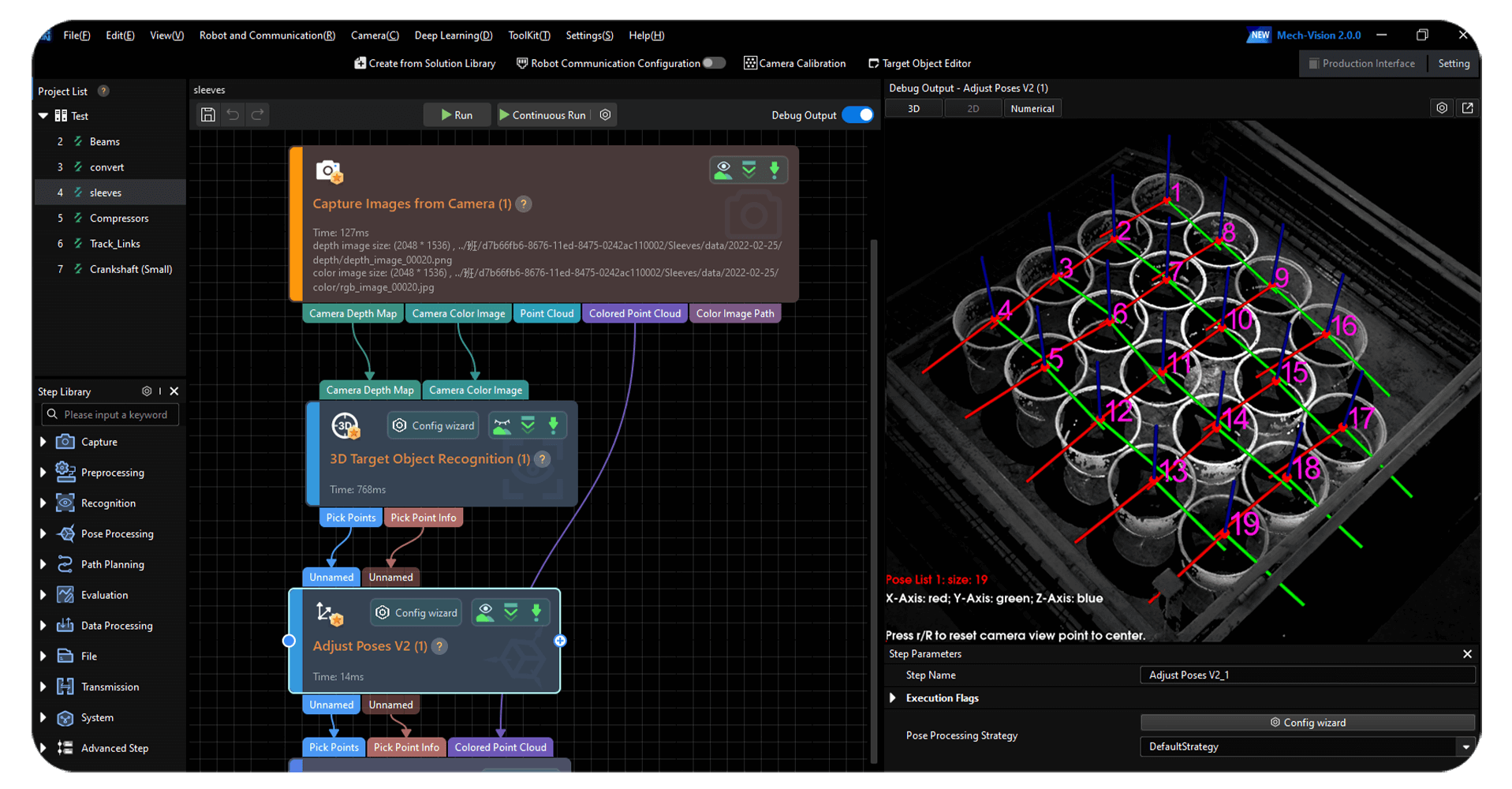

Mech-Vision Interface
- Machine vision software Mech-Vision simplifies all codes into steps, and users can edit algorithms without writing any codes.
- It can support users to develop customized algorithms and independently deploy multiple typical applications, including bin picking, machine tending, piece picking, depalletizing, and palletizing, etc.

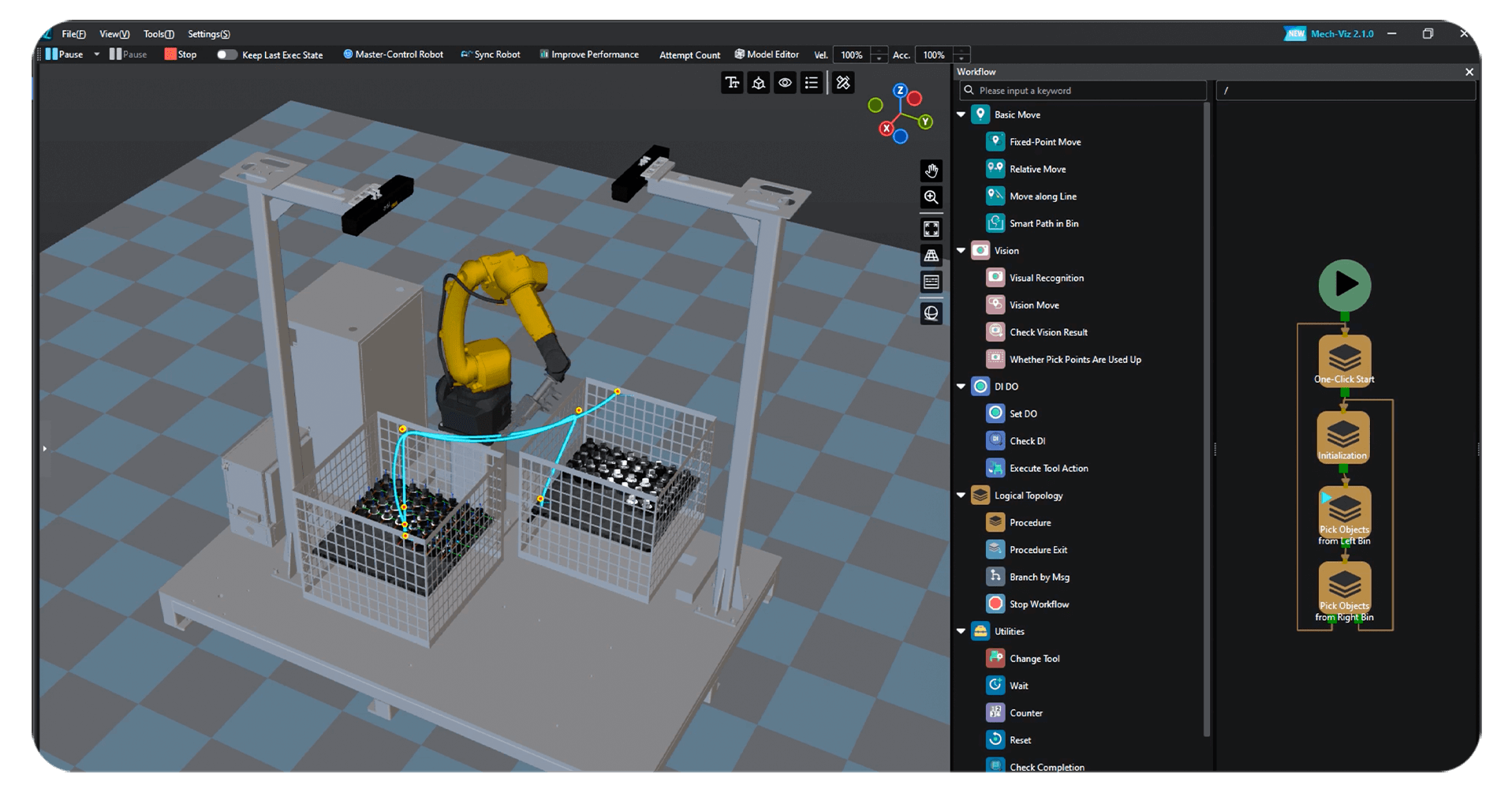

Mech-Viz Interface
- One-click simulation on the left side of the software. Users can intuitively see the robot’s path.
- The right side is the robot operation process, which is easy to learn to operate.
- Different from the traditional code-based programming software, Mech-Viz is a graphical robot programming software.
- Built-in path planning, collision detection, picking strategy, and other intelligent AI algorithms guarantee accurate robotic picking without collisions.
- With Mech-Viz, non-experts can deploy various robotic applications after simple training.
- Mech-Viz supports almost all major-brand robots.
Mech-Eye Industrial 3D Cameras

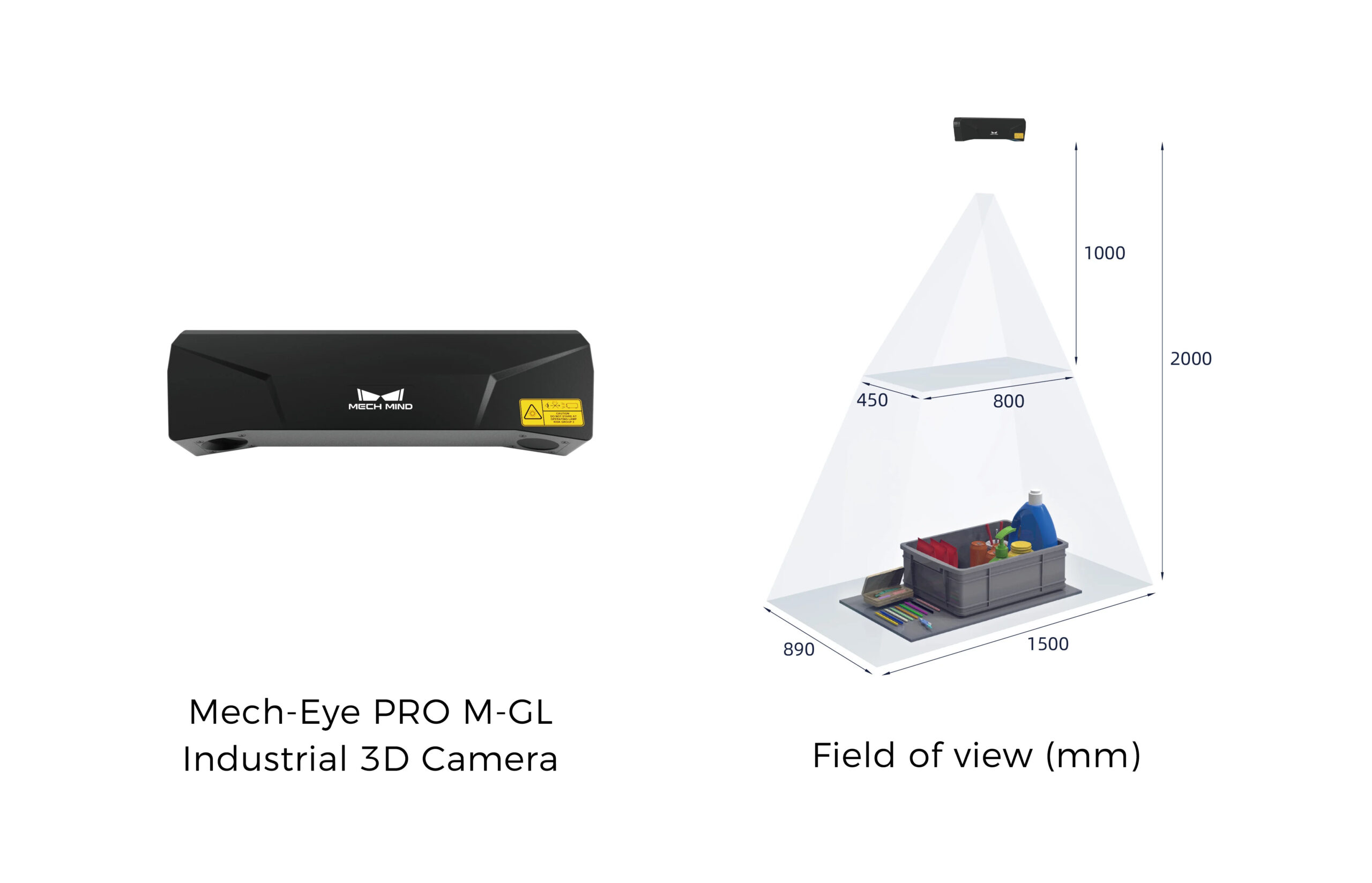

Mech-Eye PRO M-GL
- High accuracy
- Extended FOV
- Detail-rich 3D point cloud images
- Rapid image acquisition
- Designed for medium-range robotic applications

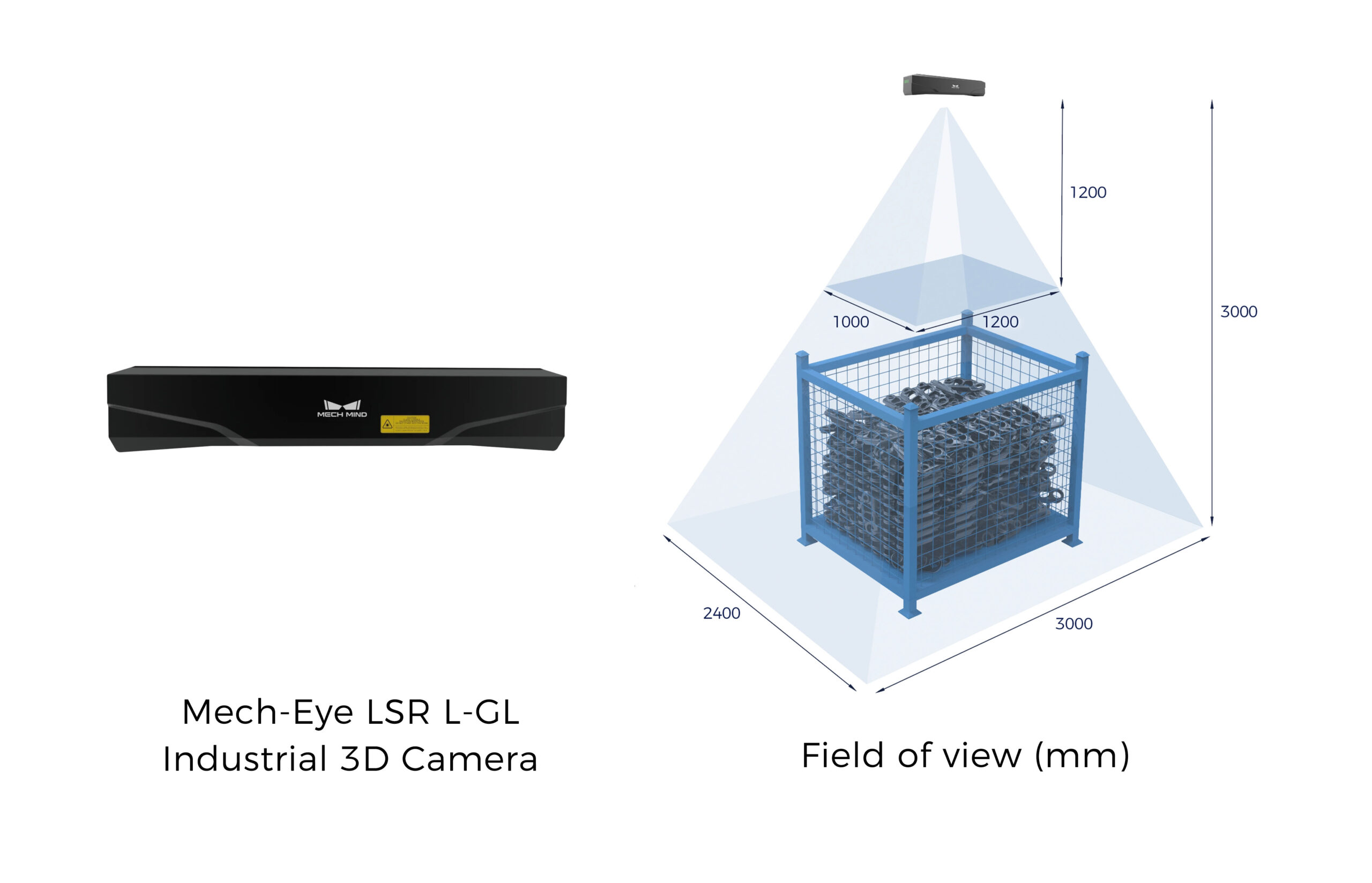

Mech-Eye LSR L-GL
- Large FOV
- Ambient light resistance
- Robust interreflection suppression
- Ideal for robotic guidance
Highly Accurate 3D Point Clouds

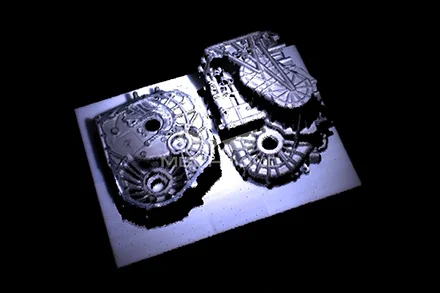

Gearbox housings

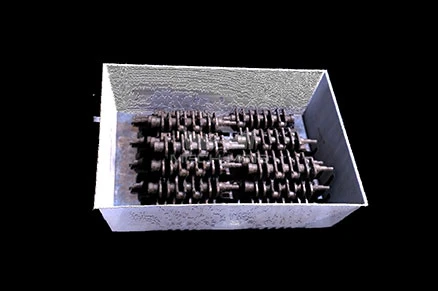

Crankshafts

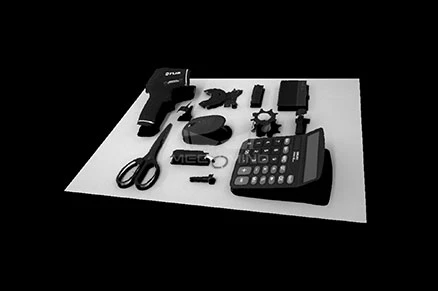

Dark objects
Cases

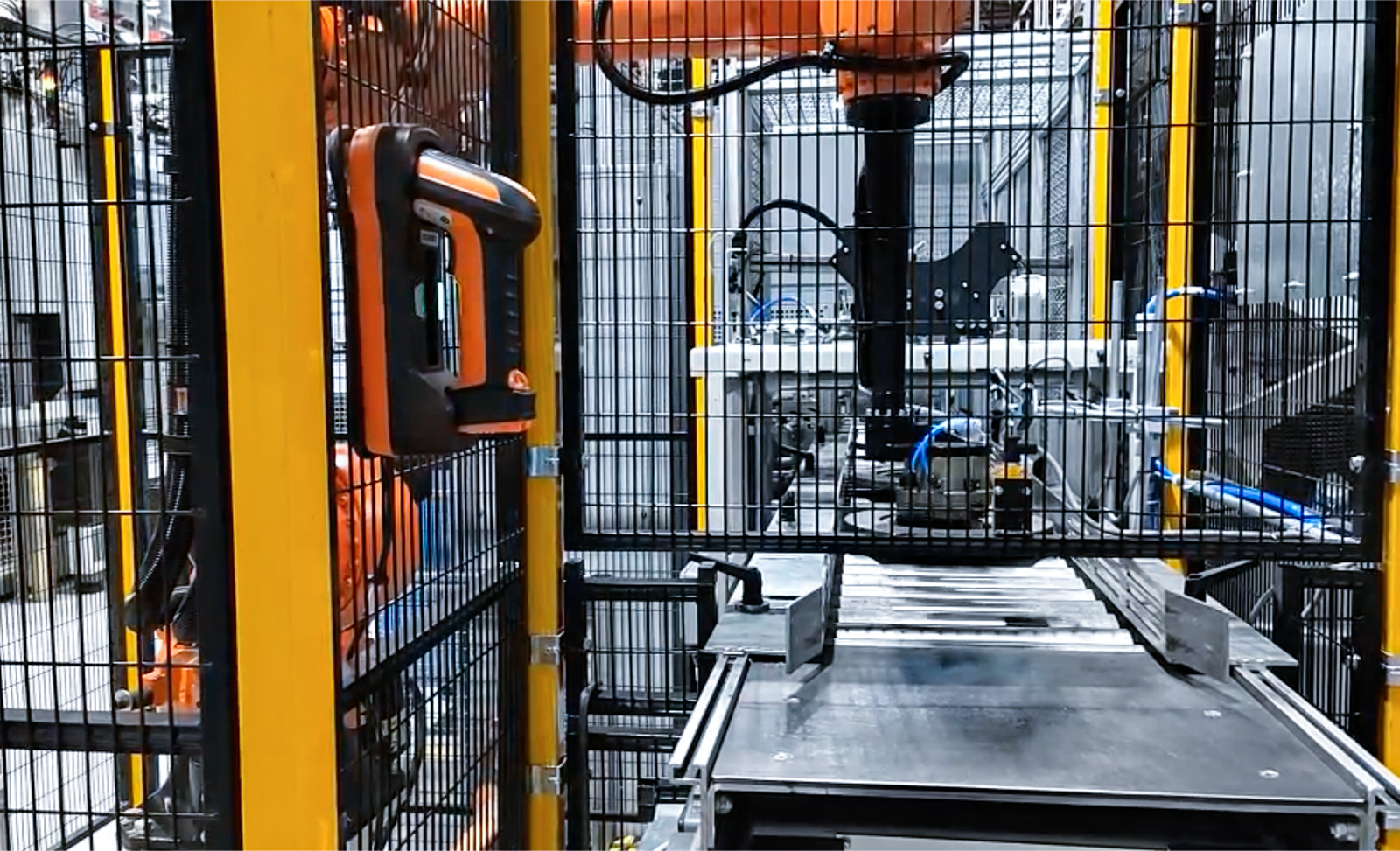

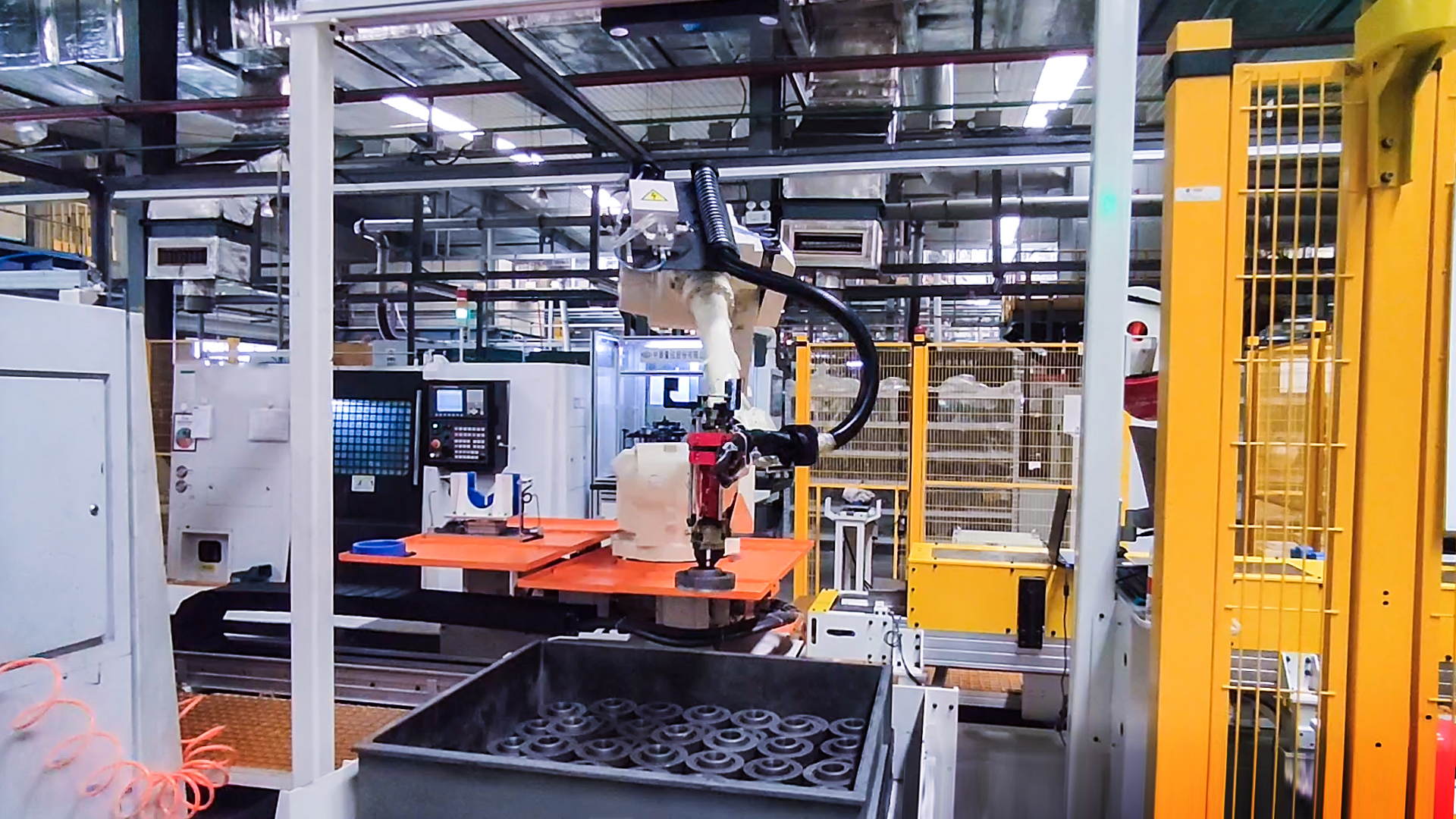

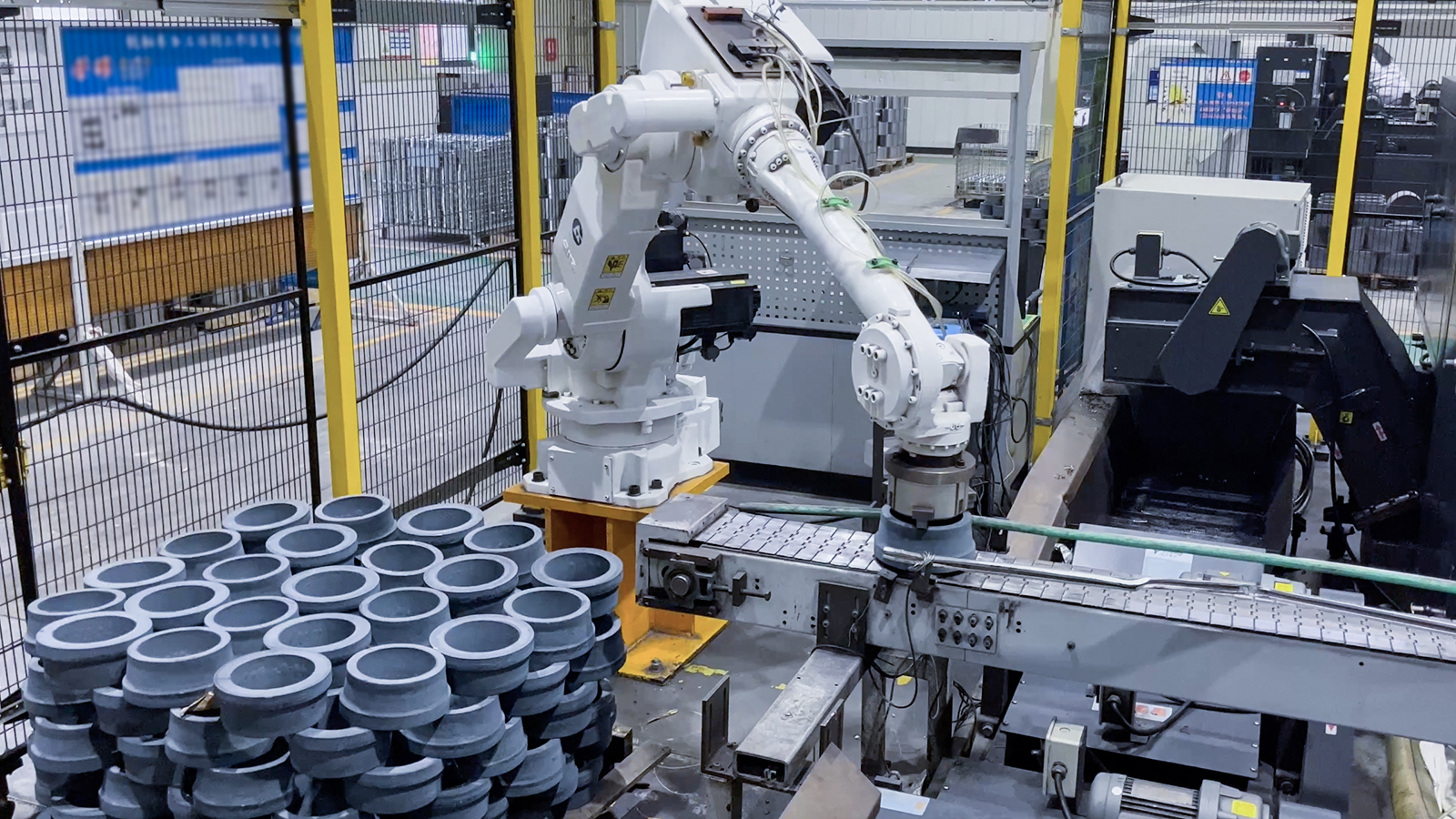

3D Vision-Guided Machine Tending of Brake Discs
3D Vision-Guided Loading of Bearing Inner Rings
3D Vision-Guided Bin Picking of Counter Shafts
Videos
3D Vision-Guided Tote Depalletizing
3D Vision-Guided Carton Depalletizing
3D Vision-Guided Depalletizing of Sacks
