Conveyor
Products
Link Conveyor

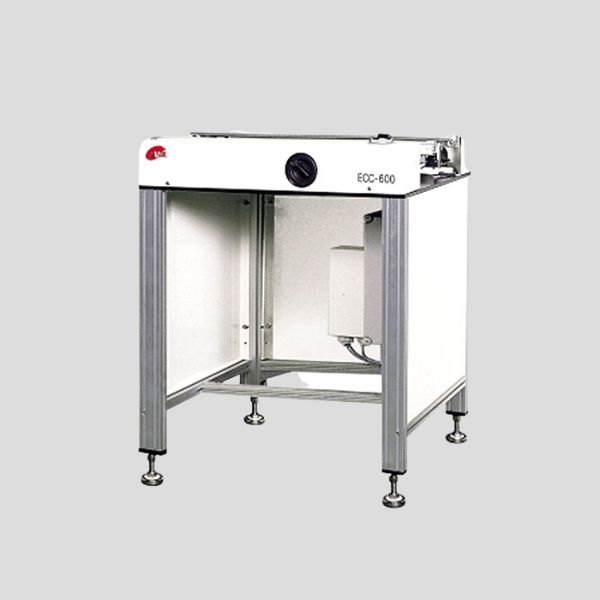

Model ECC-600 Link Conveyor. Designed to transport PCBs on edge belts and can be used as a linear buffer.
→Workstation

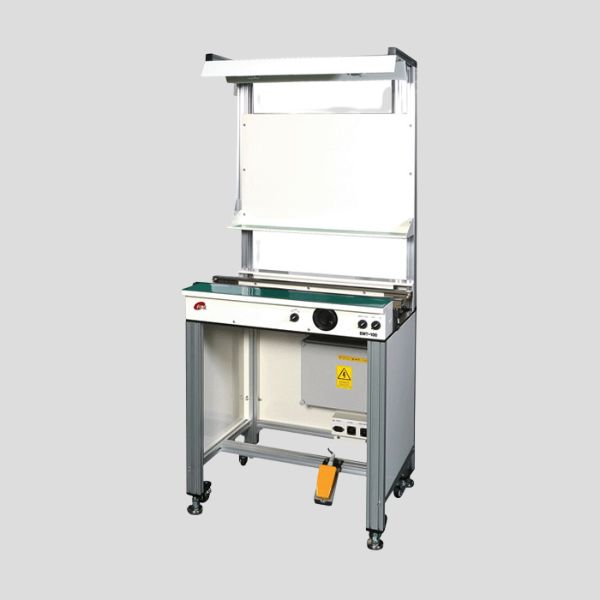

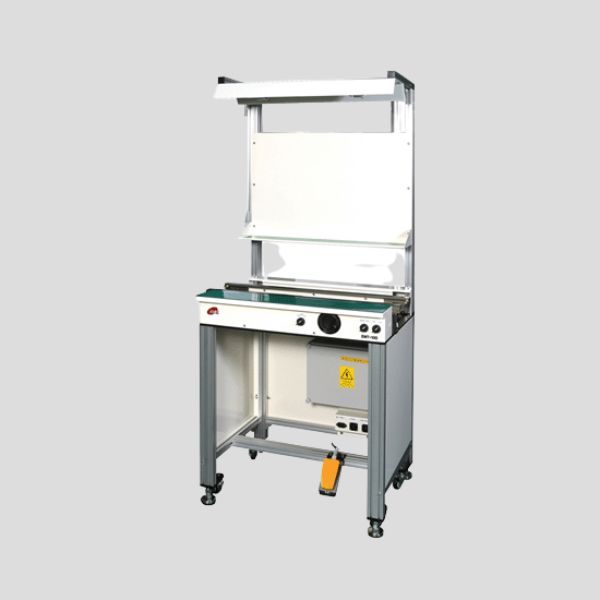

Model EWT-100. Equipment Name: Workstation. Description: Designed for working on/inspecting PCBs and transferring them to the next process. In inspection mode, the PCB stops in the middle of the conveyor. After the operator works on/inspects the PCBs, they press the foot pedal or the pass-through button. The PCB then
→Rotary Conveyor

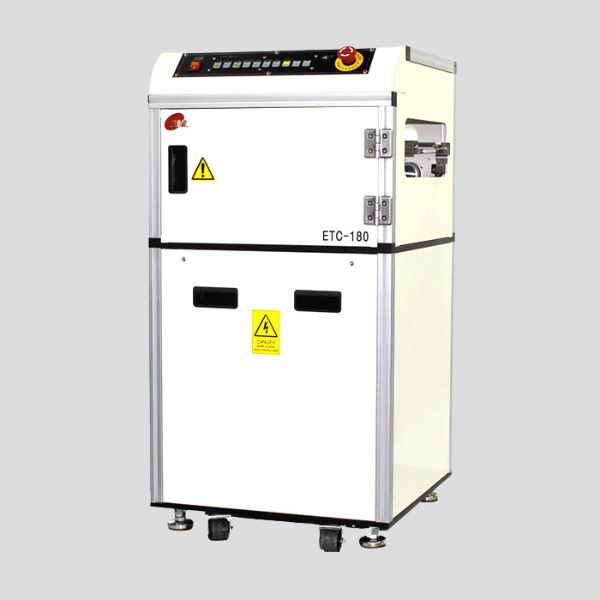

Model ETC-180. Equipment name: Rotary Conveyor. Designed to change PCB flow 90 degrees clockwise or 90 degrees counterclockwise using a pneumatic cylinder. Where factory space is limited, this machine can be used to change the line flow.
→Inverter Turning Station

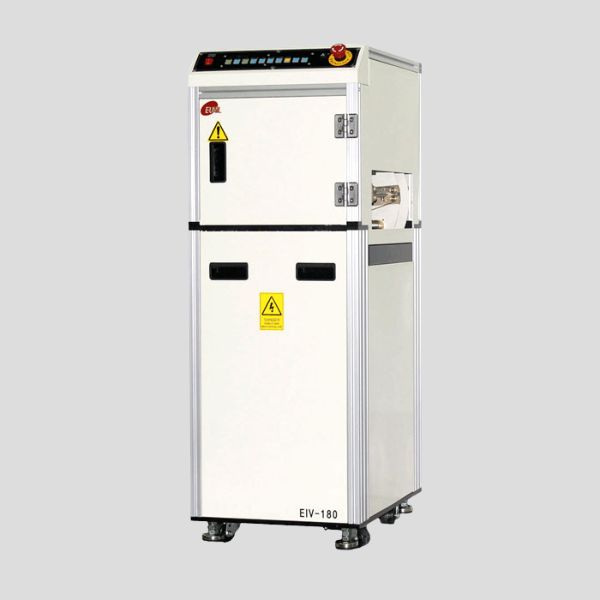

Model EIV-180. Equipment name: Inverter Turning Station. Designed to flip the top and bottom sides of the PCB 180 degrees using a pneumatic cylinder. This machine can be used for double-sided PCB processing. Pass-through mode and Automatic (Flip) mode can be selected on the touch screen.
→Gate Conveyor (Normally Open Walkway)

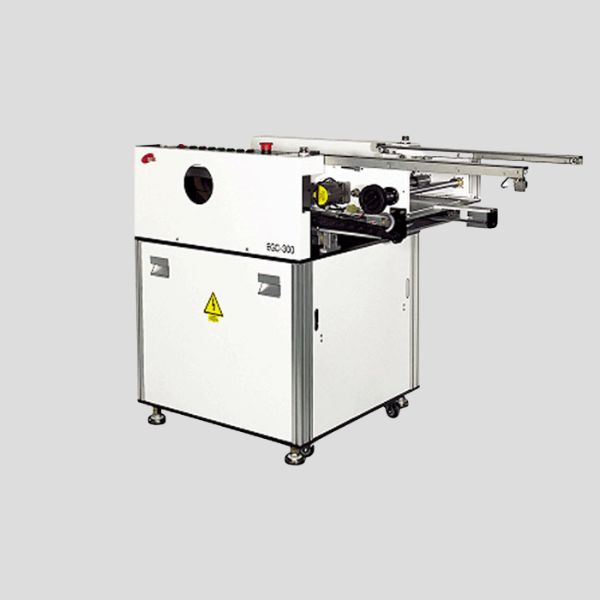

EGC-300 gate conveyor providing a normally open walkway; the shuttle gate extends automatically to transfer PCBs across the 600 mm open passage.
→Gate Conveyor (Normally Closed Walkway)
Model EGC-500. Equipment Name: Gate Conveyor (Normally Closed Walkway). Description: Designed to provide a normally closed walkway along the production line. Two buffer conveyors transfer the PCB to the downstream line like a standard conveyor. When the Interlock Reset Button is pressed, conveyor 1 lowers and conv

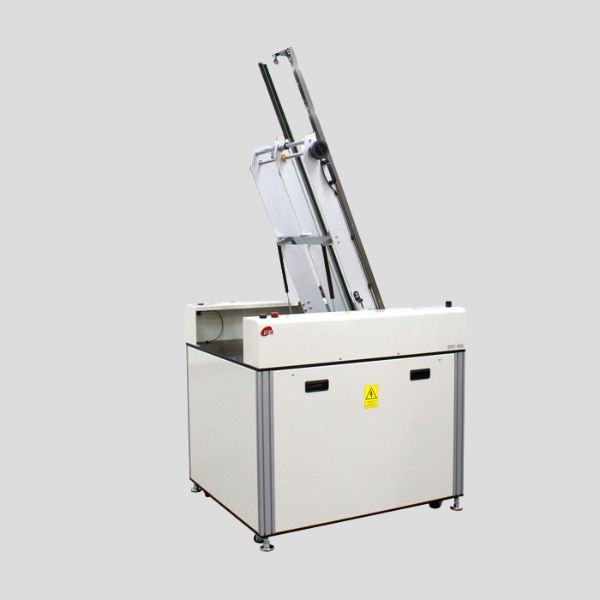

→Transfer Conveyor
Model EPC-300. Equipment name: Transfer Conveyor. Designed to provide a normally closed walkway across the production line. The PCB is transferred to the downstream line like a standard conveyor. The operator can raise the conveyor manually by pressing the Lock Reset Button. To keep the walkway open (500 mm), the conveyor is held in place by a gas spring.
→Shuttle Conveyor

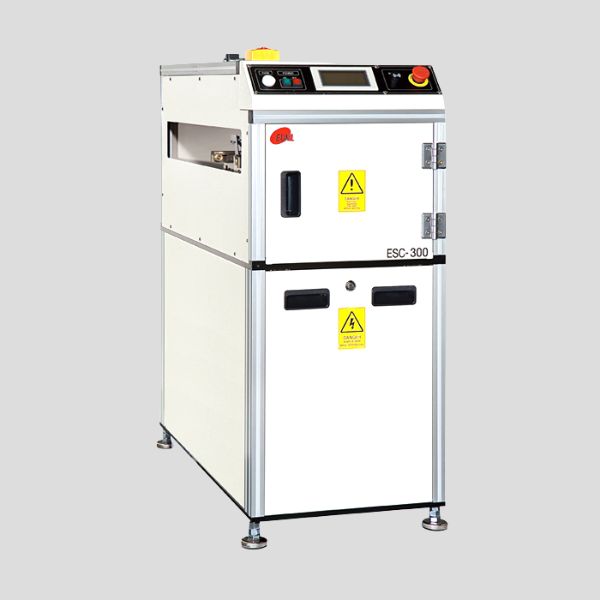

Model ESC-300. Shuttle conveyor designed to transfer PCBs between different fixed rail positions. It can collect PCBs from lines or distribute PCBs to lines. Depending on the line layout, a customized shuttle stroke, inlet/outlet position and quantity can be applied on request.

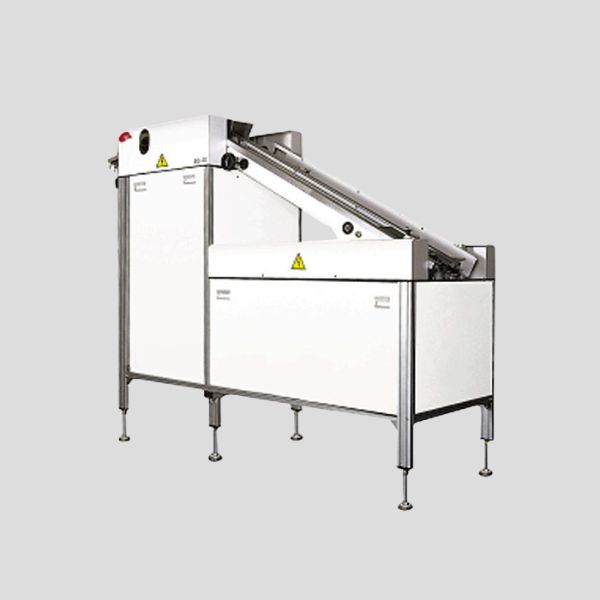

→Inclined Conveyor

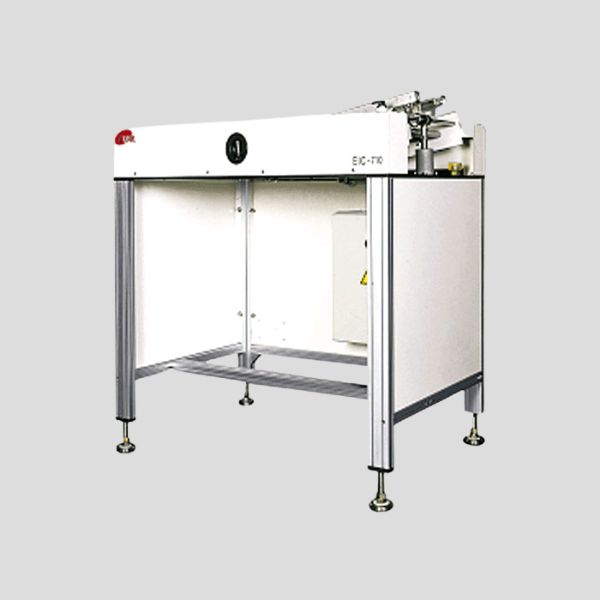

Model EIC-710. Equipment Name: Inclined Conveyor. Description: Designed to feed PCBs smoothly into a wave soldering machine with an inclined entry.
→Descending Conveyor
Model EIC-720. Equipment Name: Inclined Conveyor. Designed to unload PCBs smoothly from an angled wave soldering machine. Depending on customer requirements, different belt types and cooling fan options can be applied.

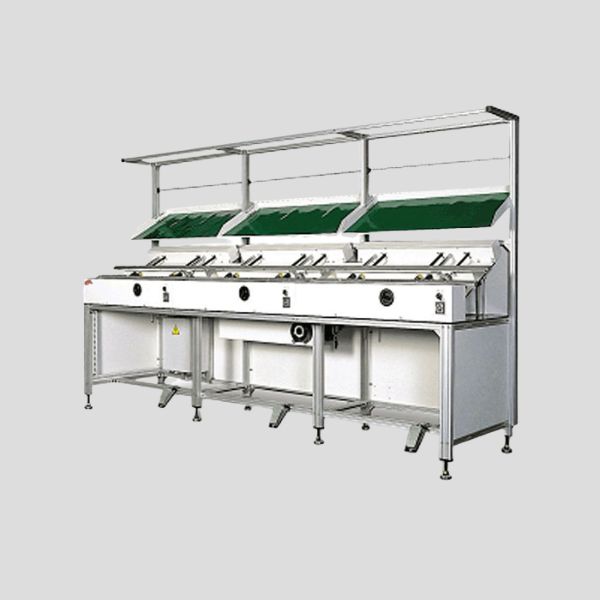

→Manual Conveyor
Model: EMC-3000. Equipment Name: Manual Insertion Conveyor. Description: Designed for use as an in-line workstation on a manual insertion production line.
→Flat Belt Conveyor

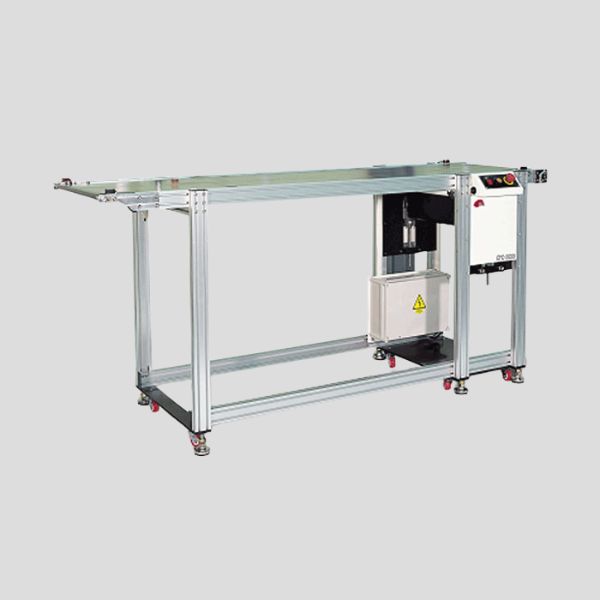

Model EFC-2000 flat belt conveyor, designed as an in-line workstation for manual placement production lines. Ideal when the underside of the product must be fully supported, or when products of different widths must be conveyed without changing the rail width.
→Inclined Placement Conveyor
Model EAC-3000. Equipment name: Inclined Placement Conveyor. Designed for use as a linear workstation in a manual placement production line. The conveyor is tilted at a set angle (15 or 30 degrees) for easy access to the PCBs.
→Up/Down Inclined Conveyor

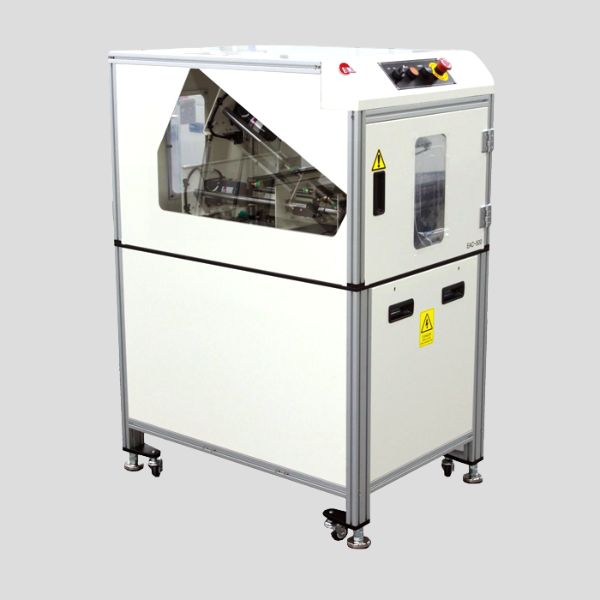

Model EAC-500. Up/Down Inclined Conveyor. Designed to be used as an in-line workstation for a manual insertion production line. This machine loads PCBs (from 0 degrees to the required angle) and unloads them (from the required angle back to 0 degrees).
→Dust Cleaner

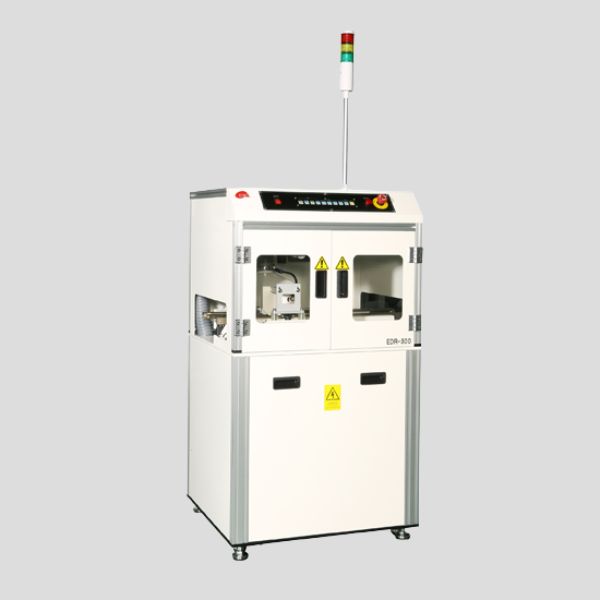

Model EDR-300. Equipment name: Dust Cleaner. Designed to clean and remove dust from bare boards at the start of the production line. Two concepts are available: an antistatic brush type and an air knife type.
→Barcode Scanning Conveyor
Model EBS-500. Equipment name: Barcode Scanning Conveyor. The hardware structure allows a barcode scanner to be mounted above and below the transfer line. The operator can adjust the scanner position manually. In scanning mode, the PCB is held by a pneumatic stopper for the customer-performed barcode scan.
→NG Conveyor
Model: ENC-700F. Equipment Name: NG Conveyor. Designed to keep NG PCBs moving after the inspection machine without interrupting visual inspection or delaying production. In NG mode, when the machine receives an NG SMEMA signal from the inspection machine, the PCB stops in the middle of the conveyor and the finger lifter
→Request a Quote
Pricing, lead time and integration details for Conveyor
