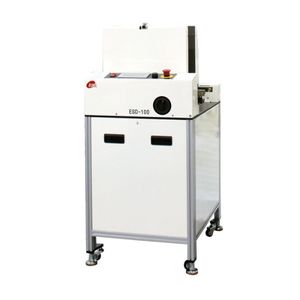

Model ESD-100. Equipment Name: Destacker. Description: Designed to load bare PCBs into the next process using an opening mechanism. The operator stacks bare PCBs in the stacking zone above the conveyor. Stacked PCBs are loaded on a first-in, first-out basis.
Model ESD-100
Equipment Name
Destacker
Description
Designed to load bare PCBs into the next process using an opening mechanism. The operator stacks bare PCBs in the stacking zone above the conveyor. Stacked PCBs are loaded on a first-in, first-out basis.
1. Automatic or Semi-Automatic Width Adjustment
2. 3-Color Tower Light with Audible Alarm
3. Safety Cover
4. ESD Grounding Sockets
5. Push-Up Type Unloading Version (Model Name: ESD-200)
6. CE Version (Model Name: ESD-100C)
Standard Features
1. Can Be Linked to a Magazine Loader (Pass-Through Mode)
2. Manual Width Adjustment (Hand Crank)
3. Touch Screen Operation Panel
4. Standard Conveyor Length: 800 mm
5. PCB Thickness: Min. 0.8 mm / Max. 2.0 mm
6. Maximum Capacity of Stacked PCBs: 100 PCBs (Based on 1.6 mm Thickness)
7. Weight Capacity of Stacked PCBs: Less Than 30 kg
8. Complies with SMEMA Specification 1.2.
| Model | ESD-100 | |
|---|---|---|
| Type | SL | YL |
| PCB Size (L x W, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×350 |
| Machine Size (L x W x H, mm) | 800x550x1110 | 800x650x1110 |
| Weight (kg) | 110 | 120 |
Request a Quote
Pricing, lead time and integration details for Destacker/Stacker
