Standard Features

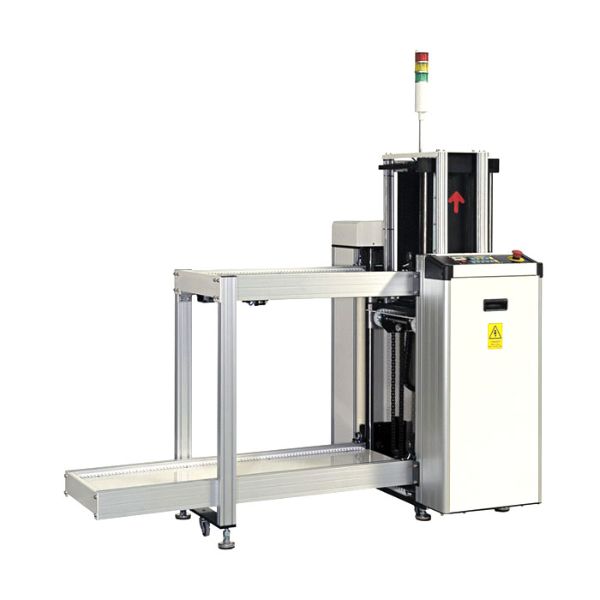

Model ESL-500. Equipment name: Magazine Loader. Designed to load PCBs from the magazine rack and transfer them to the next process by cylinder pushing.
Model ESL-500
Equipment Name
Magazine Loader
Description
Designed to load PCBs from the magazine rack and transfer them to the next process by cylinder pushing.
1. Touch screen operation panel
2. 3-color tower lamp with audible alarm
3. Magazine changing time up to 26 seconds (220V, 60Hz, 1Ph)
4. Magazine rack capacity: 5 racks
(Upper magazine conveyor: 2 racks, Lower magazine conveyor: 3 racks)
5. Selectable setting of pitch and first start slot via touch screen
6. Compliant with SMEMA Spec. 1.2
Options
1. Exit rail guide
2. Automatic width adjustment for exit rail guide
3. Automatic pusher position adjustment
4. ESD grounding sockets
5. Safety cover
6. High-speed magazine changing time up to 15 seconds

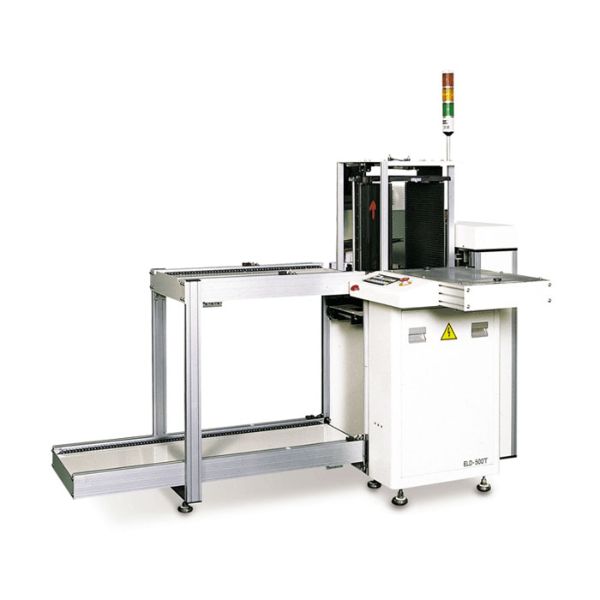

7. Space saving: T-shape series, dual pusher cylinder type

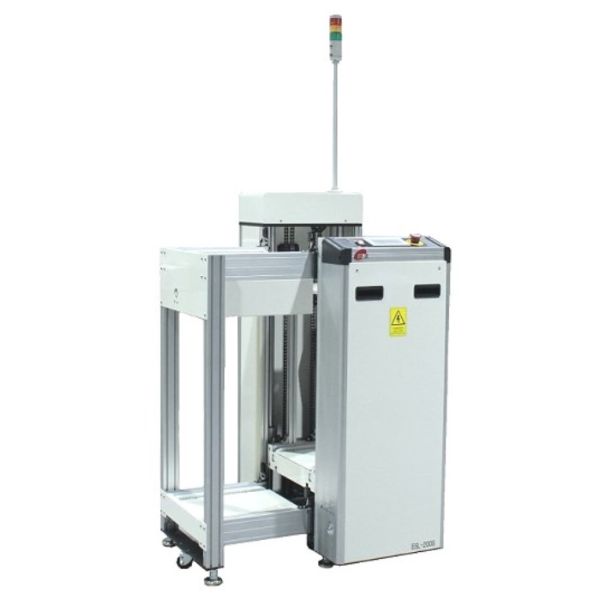

8. Lower volume handling (Model name: ESL-100, 200, 300 or 400 (1, 2, 3 or 4 racks))
9. Magazine combination type: SYL, SLL, SXL, YLL, YXL, SYLL, SYXL
10. Dual loader type (Model name: ESL-500D)

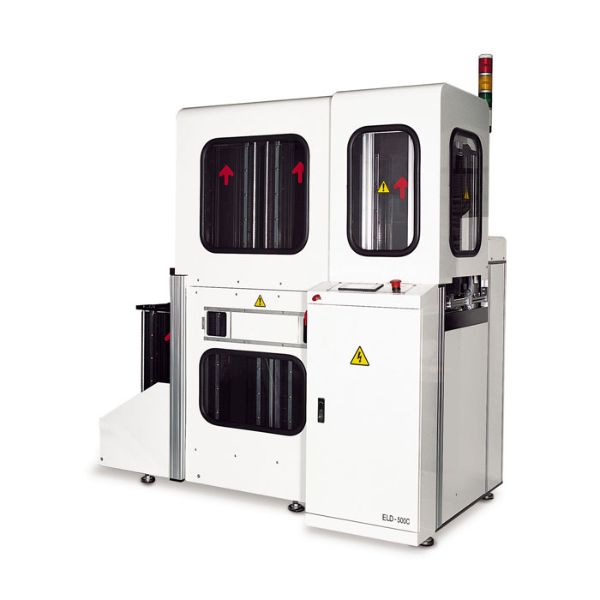

11. CE device (Model name: ESL-500C)
12. Applicable for large PCBs (larger than 530Lx460W)
| Model | ESL-500 | |||
|---|---|---|---|---|
| Type | SL | YL | LL | XL |
| PCB Size (LxW, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×330 | 50×50 ~ 530×390 | 50×50 ~ 530×460 |
| Magazine Size (LxWxH, mm) | 355x318x570 | 460x400x570 | 535x460x570 | 535x530x563 |
| Machine Size (LxWxH, mm) | 1630 x 830 x 1150 | 2030x910x1150 | 2410 x 1000 x 1150 | 2410x1070x1150 |
| Weight (kg) | 180 | 200 | 220 | 240 |
