Standard Features

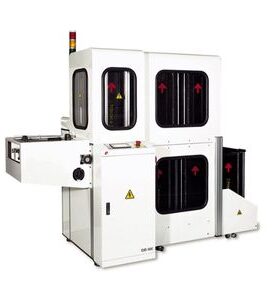

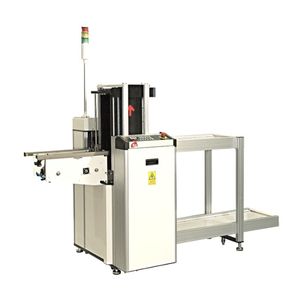

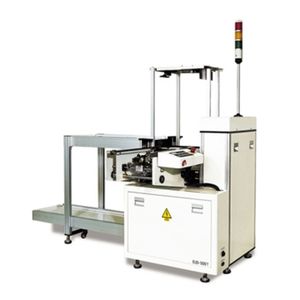

ModelESU-500Equipment NameMagazine UnloaderDescriptionDesigned to store assembled PCBs into the magazine rack by cylinder pushing.
Model
ESU-500
Equipment Name
Magazine Unloader
Description
Designed to store assembled PCBs into the magazine rack by cylinder pushing.
1. Manual Width Adjustment (Knob Bolt Fixing)
2. Touch Screen for Operation Panel
3. 3-Color Tower Lamp with Audible Alarm
4. Magazine Change Time up to 26 seconds (220V, 60Hz, 1Ph)
5. Magazine Rack Capacity: 5 Racks
(Upper Magazine Conveyor: 2 Racks, Lower Magazine Conveyor: 3 Racks)
6. Selectable Setting for Pitch and First Start Slot via Touch Screen
7. Compliant with SMEMA Spec. 1.2.
Options
1. Manual Width Adjustment (Hand Crank)
2. Automatic or Semi-Automatic Width Adjustment
3. Pusher Auto Position at Half of Conveyor Width
4. ESD Grounding Sockets
5. Safety Cover
6. High-Speed Magazine Change Time up to 15 seconds
7. Space Saving: T-Shape Series
8. Lower Volume Handling (Model Name: ESU-100, 200, 300 or 400 (1, 2, 3 or 4 racks))
9. Magazine Combination Type: SYL, SLL, SXL, YLL, YXL, SYLL, SYXL
10. Dual Unloader Type (Model Name: ESU-500D)
11. CE Machine (Model Name: ESU-500C)
12. Applicable for Large PCBs (larger than 530Lx460W)
| Model | ESU-500 | |||
|---|---|---|---|---|
| Type | SL | YL | LL | XL |
| PCB Size (LxW, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×330 | 50×50 ~ 530×390 | 50×50 ~ 530×460 |
| Magazine Size (LxWxH, mm) | 355x318x570 | 460x400x570 | 535x460x570 | 535x530x563 |
| Machine Size (LxWxH, mm) | 2150x830x1150 | 2650x910x1150 | 3130 x 1000 x 1150 | 3130 x 1070 x 1150 |
| Weight (kg) | 190 | 210 | 230 | 250 |
