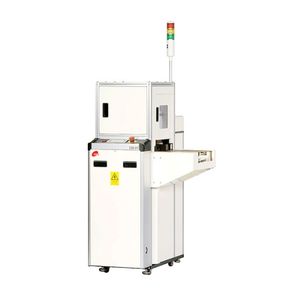

Model ESB-200. Equipment Name: Belt Buffer. Description: Designed to balance the production line between machines with different process times. For stacking and transferring PCBs, a separate belt system in each slot provides contact-free handling.
Model ESB-200
Equipment Name
Belt Buffer
Description
Designed to balance the production line between machines with different process times. For stacking and transferring PCBs, a separate belt system in each slot provides contact-free handling.
1. ESD Grounding Sockets
2. Safety Cover for Inlet Conveyor
3. Cooling Fan
4. High-Speed Lifting
5. Dual Buffer Type (Model Name: ESB-200D)
6. CE Machine (Model Name: ESB-200C)
7. Large PCBs (larger than 530L x 460W) Applicable
Standard Features
1. Automatic Width Adjustment
2. Touch Screen Operation Panel
3. 3-Color Tower Lamp with Audible Alarm
4. PCB Stack Capacity: 12 Boards (based on 1 step, 30 mm)
5. Selectable Conveyor Position (Must be fixed at the time of order.)
: Before the Lifting Rack or After the Lifting Rack
6. Selectable Mode: Buffer (FIFO, LIFO) / By-Pass
7. Compliant with SMEMA Spec. 1.2.
| Model | ESB-200 | ||
|---|---|---|---|
| Type | SL | YL | XL |
| PCB Size (L x W, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×350 | 50×50 ~ 530×460 |
| Machine Size (L x W x H, mm) | 820 × 830 × 1400 | 1200 × 900 × 1400 | 1220 × 1070 × 1400 |
| Weight (kg) | 220 | 250 | 300 |
