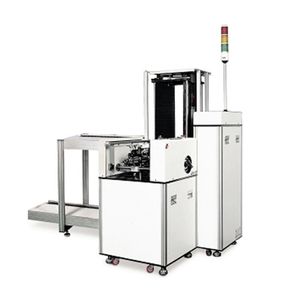

Model EMB-370. Equipment Name: Magazine Buffer. Description: Designed to balance the production line between machines with different process times. The cylinder pushes PCBs to stack them into the magazine rack and deliver them to the next process. The machine offers various functions with a five-magazine rack capacity
Model EMB-370
Equipment Name
Magazine Buffer
Description
Designed to balance the production line between machines with different process times. The cylinder pushes PCBs to stack them into the magazine rack and deliver them to the next process. The machine offers various functions with a five-magazine rack capacity. FIFO or LIFO modes can be selected for buffering. After an inspection machine, NG PCBs can be stacked in NG mode. In loader mode it loads PCBs from the magazine rack, and in unloader mode it unloads PCBs into the magazine rack.
1. Automatic or Semi-Automatic Width Adjustment
2. Automatic Width Adjustment of Exit Rail Guide
3. Automatic Pusher Positioning at Half of the Conveyor Width
4. ESD Grounding Sockets
5. Safety Cover
6. Cooling Fan
7. High-Speed Magazine Change Time of up to 15 seconds
8. Lower-Volume Handling (2, 3 or 4 racks)
9. CE Device (Model name: EMB-370C)
10. Applicable for Large PCBs (larger than 530Lx460W)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen Operating Panel
3. 3-Color Tower Lamp with Audible Alarm
4. Magazine Change Time of up to 26 seconds (220V, 60Hz, 1Ph)
5. Magazine Rack Capacity: 5 Racks
(Upper Magazine Conveyor: 2 Racks, Lower Magazine Conveyor: 3 Racks)
6. Selectable Magazine Conveyor Position (Must be fixed at the time of order.)
: Front Loading or Rear Loading
7. Selectable Setting and First Start Slot via Touch Screen
8. Various Functions: Buffer (FIFO/LIFO)/By-Pass/NG/Loader/Unloader
9. Exit Rail Guide
10. Compliant with SMEMA Spec. 1.2.
| Model | EMB-370 | |||
|---|---|---|---|---|
| Type | SL | YL | LL | XL |
| PCB Size (LxW, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×330 | 50×50 ~ 530×390 | 50×50 ~ 530×460 |
| Magazine Size (LxWxH, mm) | 355x318x570 | 460x400x570 | 535x460x570 | 535x530x563 |
| Machine Size (LxWxH, mm) | 1050x1817x1150 | 1250x2197x1150 | 1450x2437x1150 | 1450 x 2707 x 1150 |
| Weight (kg) | 240 | 270 | 300 | 330 |
